FAG 6009-2RSR-L038-C3 FAG6009-2RSC3
  1. pin-int

FAG 6009-2RSR-L038-C3 FAG6009-2RSC3

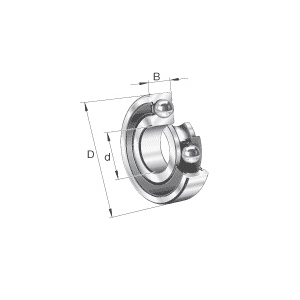

FAG 6009-2RSR-L038-C3 60..-2RSR Deep Groove Ball Bearing, 45 mm Dia Bore, 75 mm OD, 1 Rows, 16 mm W, 21200 N Dynamic/14400 N Static/730 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6009-2RSC3
  • MPN: 6009-2RSR-L038-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG Deep Groove Ball Bearing, Series: 60..-2RSR, 45 mm Bore, 75 mm OD, 1 Rows, 16 mm Width, Double Seal Closure, 21200 N Dynamic/14400 N Static/730 N Fatigue Load, Steel Bearing, Buna-N Seal, Steel Cage, 4950 rpm Maximum, -30 to 110 deg C, Uncoated

Bearing Material      :      Steel
Bore Diameter      :      45 mm
Cage Material      :      Steel
Closure Type      :      Double Seal
Finish      :      Uncoated
Load Capacity      :      21200 N Dynamic/14400 N Static/730 N Fatigue
Maximum Speed      :      4950 rpm
Number of Rows      :      1
Outside Diameter      :      75 mm
Seal Material      :      Buna-N
Series      :      60..-2RSR
Temperature Rating      :      -30 to 110 deg C
Width      :      16 mm
  • Lip seals on both sides
  • C3 radial internal clearance
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6000_C_2HRS_L038_C3_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6009_2RSR_L038_C3_Specification_Sheet.pdf
