FAG 6006-C3 FAG6006C3
  1. pin-int

FAG 6006-C3 FAG6006C3

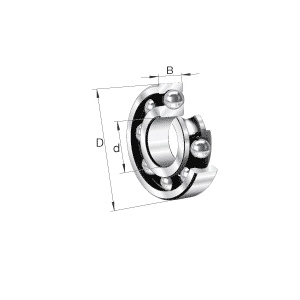

FAG 6006-C3 60 Series Deep Groove Ball Bearing, 30 mm Dia Bore, 55 mm OD, 1 Row, 13 mm W, 13500 N Dynamic/8000 N Static/390 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6006C3
  • MPN: 6006-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG Deep Groove Ball Bearing, Series: 60 Series, 30 mm Bore Dia, 55 mm Outside Dia, 1 Row, 13 mm W, Open Closure, 13500 N Dynamic/8000 N Static/390 N Fatigue, Steel Bearing, Steel Cage, 18500 rpm Maximum, 120 deg C, Uncoated

Bearing Material      :      Steel
Bore Diameter      :      30 mm
Cage Material      :      Steel
Closure Type      :      Open
Finish      :      Uncoated
Load Capacity      :      13500 N Dynamic/8000 N Static/390 N Fatigue
Maximum Speed      :      18500 rpm
Number of Rows      :      1
Outside Diameter      :      55 mm
Series      :      60 Series
Temperature Rating      :      120 deg C
Width      :      13 mm
  • C3 radial internal clearance
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6000_C_2HRS_L038_C3_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6006_C3_Specification_Sheet.pdf
