FAG 54218 FAG54218

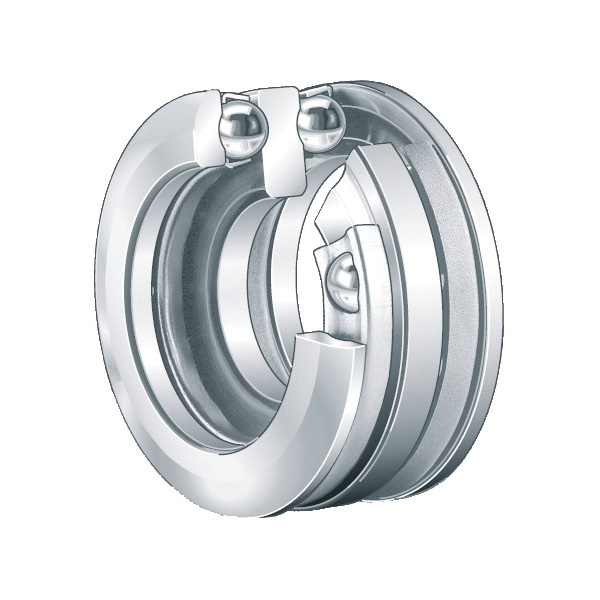

FAG 54218 Double Direction Axial Deep Groove Ball Bearing With Spherical Housing Locating Washer, 75 mm Dia Bore, 135 mm OD, 2 Rows, 69 mm W, 119000 N Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG54218
- MPN: 54218
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Axial deep groove ball bearings comprise shaft locating washers, housing locating washers and ball and cage assemblies. The bearings are not self-retaining, the ball and cage assembly and bearing washers can therefore be fitted separately. In addition to the series with flat washers, series are also available with spherical housing locating washers for the compensation of static angular misalignment. These designs are normally used in conjunction with seating washers. Axial deep groove ball bearings are available in single and double direction designs. Both designs can support high axial forces but cannot be subjected to radial loads.
FAG Axial Deep Groove Ball Bearing, Double Direction, Series: 542, 75 mm Bore, 135 mm OD, 2 Rows, 69 mm Width, Open Closure, 119000 N Load, Sheet Steel Cage, 2900 rpm Maximum, -30 to 150 deg C
| Bore Diameter | : | 75 mm |
| Cage Material | : | Sheet Steel |
| Closure Type | : | Open |
| Load Capacity | : | 119000 N |
| Maximum Speed | : | 2900 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 135 mm |
| Series | : | 542 |
| Temperature Rating | : | -30 to 150 deg C |
| Type | : | Double Direction |
| Width | : | 69 mm |
- Standardized, ready-to-fit units with high axial load carrying capacity
- Suitable exclusively for the support of predominantly axial
- Permit higher speeds than roller or needle roller and cage assemblies
- 119000 N dynamic/300000 N static
