FAG 52310 FAG52310

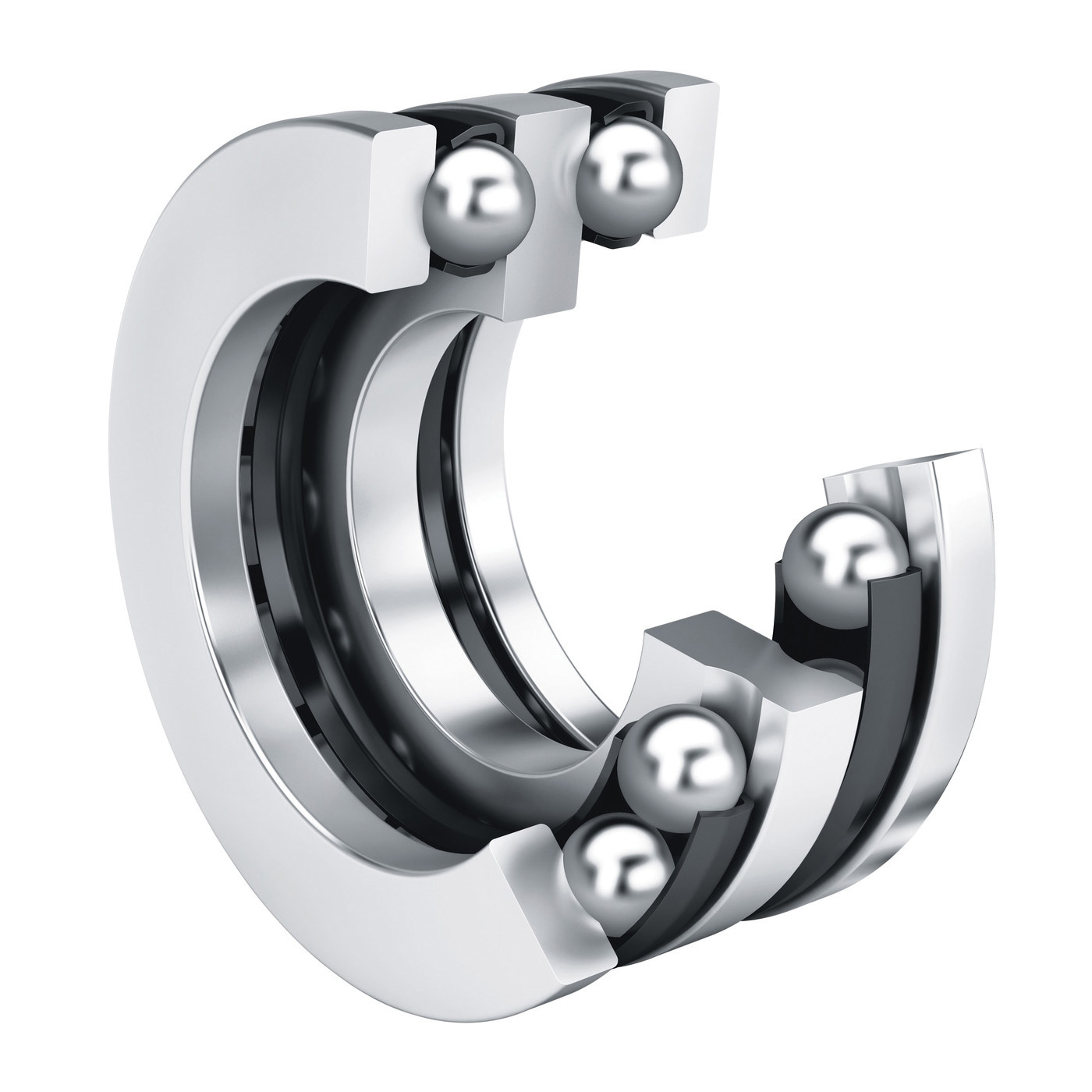

FAG 52310 Double Direction Axial Deep Groove Ball Bearing With Spherical Housing Locating Washer, 40 mm Dia Bore, 95 mm OD, 2 Rows, 58 mm W, 82000 N Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG52310
- MPN: 52310
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Axial deep groove ball bearings comprise shaft locating washers, housing locating washers and ball and cage assemblies. The bearings are not self-retaining, the ball and cage assembly and bearing washers can therefore be fitted separately. In addition to the series with flat washers, series are also available with spherical housing locating washers for the compensation of static angular misalignment. These designs are normally used in conjunction with seating washers. Axial deep groove ball bearings are available in single and double direction designs. Both designs can support high axial forces but cannot be subjected to radial loads.
FAG Axial Deep Groove Ball Bearing, Double Direction, Series: 523, 40 mm Bore, 95 mm OD, 2 Rows, 58 mm Width, Open Closure, 82000 N Load, Sheet Steel Cage, 3550 rpm Maximum, -30 to 150 deg C
| Bore Diameter | : | 40 mm |
| Cage Material | : | Sheet Steel |
| Closure Type | : | Open |
| Load Capacity | : | 82000 N |
| Maximum Speed | : | 3550 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 95 mm |
| Series | : | 523 |
| Temperature Rating | : | -30 to 150 deg C |
| Type | : | Double Direction |
| Width | : | 58 mm |
- Standardized, ready-to-fit units with high axial load carrying capacity
- Suitable exclusively for the support of predominantly axial
- Permit higher speeds than roller or needle roller and cage assemblies
- 82000 N dynamic/169000 N static
