FAG 51206 FAG51206
  1. pin-int

FAG 51206 FAG51206

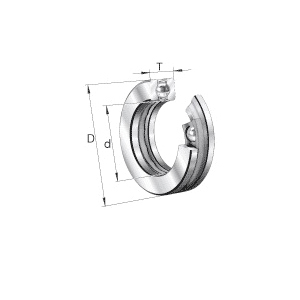

FAG 51206 Axial Deep Groove Ball Bearing, 30 mm Dia Bore, 52 mm OD, 1 Rows, 16 mm W, 23900 N Dynamic/46000 N Static Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG51206
  • MPN: 51206
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG Axial Deep Groove Ball Bearing, Series: 512 Series, 30 mm Bore Dia, 52 mm Outside Dia, 1 Rows, 16 mm Width, Separable Face, Single Thrust Direction, 23900 N Dynamic/46000 N Static, Steel Bearing, 7300 rpm Maximum, -30 to 150 deg C

Bearing Material      :      Steel
Bore Diameter      :      30 mm
Face Type      :      Separable
Load Capacity      :      23900 N Dynamic/46000 N Static
Maximum Speed      :      7300 rpm
Number of Rows      :      1
Outside Diameter      :      52 mm
Series      :      512 Series
Temperature Rating      :      -30 to 150 deg C
Thrust Direction      :      Single
Width      :      16 mm
  • Sheet steel cage
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_51206_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_DKLFA2590_2RS_Catalog.pdf
