FAG 3306-BD-XL-2HRS-TVH-C3 FAG3306BDXL2HRSTVHC3

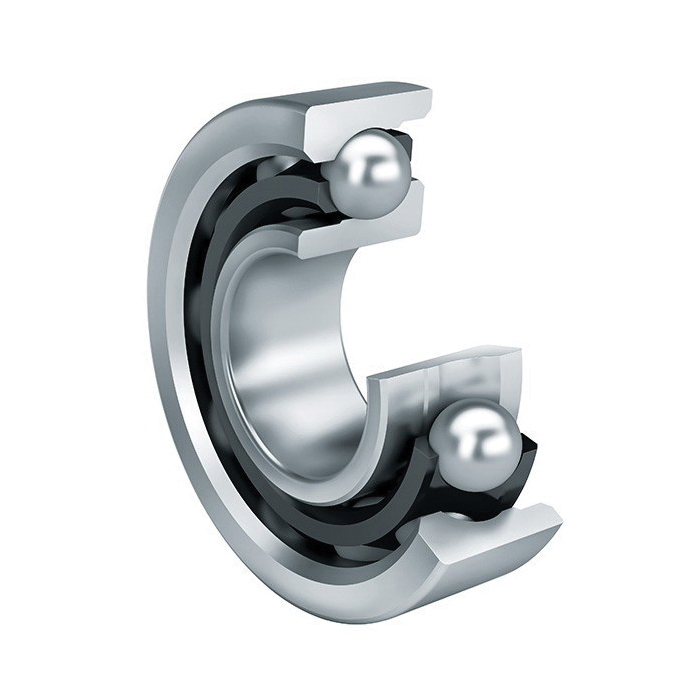

FAG 3306-BD-XL-2HRS-TVH-C3 Angular Contact Ball Bearing, 30 mm Dia Bore, 72 mm OD, 2 Rows, 30.2 mm W, 30 deg, 43000 N Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG3306BDXL2HRSTVHC3
  • MPN: 3306-BD-XL-2HRS-TVH-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG Angular Contact Ball Bearing, 30 mm Bore, 72 mm OD, 2 Rows, 30.2 mm Width, 30 deg Contact Angle, Double Seal Closure, 43000 N Load, Rubber Seal, Polyamide 66 Cage, 7800 rpm Maximum

Bore Diameter      :      30 mm
Cage Material      :      Polyamide 66
Closure Type      :      Double Seal
Contact Angle      :      30 deg
Load Capacity      :      43000 N
Maximum Speed      :      7800 rpm
Number of Rows      :      2
Outside Diameter      :      72 mm
Seal Material      :      Rubber
Width      :      30.2 mm
  • 43000 N dynamic/29500 N static load
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_3306BDXL2HRSTVHC3_Specification_Sheet.pdf
