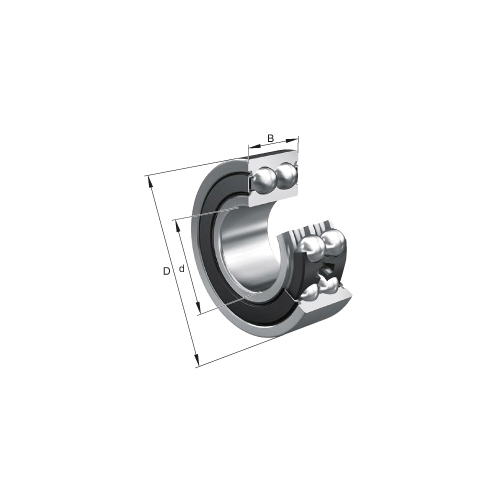

FAG 3003-B-2RZ-TVH INA3003-2Z
FAG 3003-B-2RZ-TVH 30..-B-2RZ Angular Contact Ball Bearing, 17 mm Dia Bore, 35 mm OD, 2 Rows, 14 mm W, 25 deg, 9100 N Dynamic/6100 N Static/305 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: INA3003-2Z
- Alt Part Number: 3003-2Z
- MPN: 3003-B-2RZ-TVH
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Angular Contact Ball Bearing, Series: 30..-B-2RZ, 17 mm Bore, 35 mm OD, 2 Rows, 14 mm Width, 25 deg Contact Angle, Double Shield Closure, 9100 N Dynamic/6100 N Static/305 N Fatigue Load, Steel Cage, 16800 rpm Maximum, -30 to 150 deg C, Uncoated
| Bore Diameter | : | 17 mm |
| Cage Material | : | Steel |
| Closure Type | : | Double Shield |
| Contact Angle | : | 25 deg |
| Finish | : | Uncoated |
| Load Capacity | : | 9100 N Dynamic/6100 N Static/305 N Fatigue |
| Maximum Speed | : | 16800 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 35 mm |
| Series | : | 30..-B-2RZ |
| Temperature Rating | : | -30 to 150 deg C |
| Width | : | 14 mm |
- Non-contact radial seals on both sides
Specification Sheet
