FAG 22224-E1-XL-C3 FAG22224E1XLC3
  1. pin-int

FAG 22224-E1-XL-C3 FAG22224E1XLC3

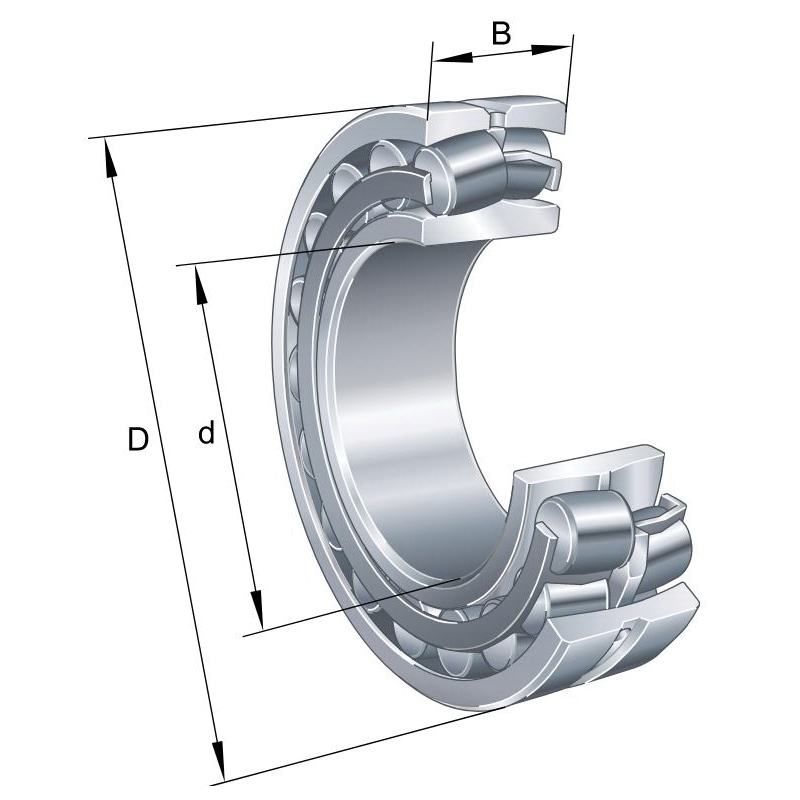

FAG 22224-E1-XL-C3 222-E1 Spherical Roller Bearing, 120 mm Dia Bore, 215 mm OD, 2 Rows, 58 mm W, 740000 N Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG22224E1XLC3
  • MPN: 22224-E1-XL-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Spherical roller bearings are designed for systems in which high loads must be supported and shaft flexing and misalignments compensated. They deliver extremely high performance and are designed to carry extreme loads. The decades of experience our engineers have gathered combined with innovative ideas improve our spherical roller bearings even further. As a matter of fact, our quest for perfection in development and production ensures optimum kinematics and low wear, which increases the service life even more. And that comes at a low-maintenance outlay and minimum maintenance costs.

FAG Spherical Roller Bearing, Series: 222-E1, 120 mm Bore, 215 mm OD, 2 Rows, 58 mm Width, Open Closure, 740000 N Load, Sheet Steel Cage, 3650 rpm Maximum, -30 to 200 deg C

Bore Diameter      :      120 mm
Cage Material      :      Sheet Steel
Closure Type      :      Open
Load Capacity      :      740000 N
Maximum Speed      :      3650 rpm
Number of Rows      :      2
Outside Diameter      :      215 mm
Series      :      222-E1
Temperature Rating      :      -30 to 200 deg C
Width      :      58 mm
  • Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two-rows of rollers
  • The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments
  • 640000 N dynamic/740000 N static load
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_22224E1XLC3_Specification_Sheet.pdf
