FAG 22212-E1A-XL-K-M-C3 FAG22212E1XLAKMC3

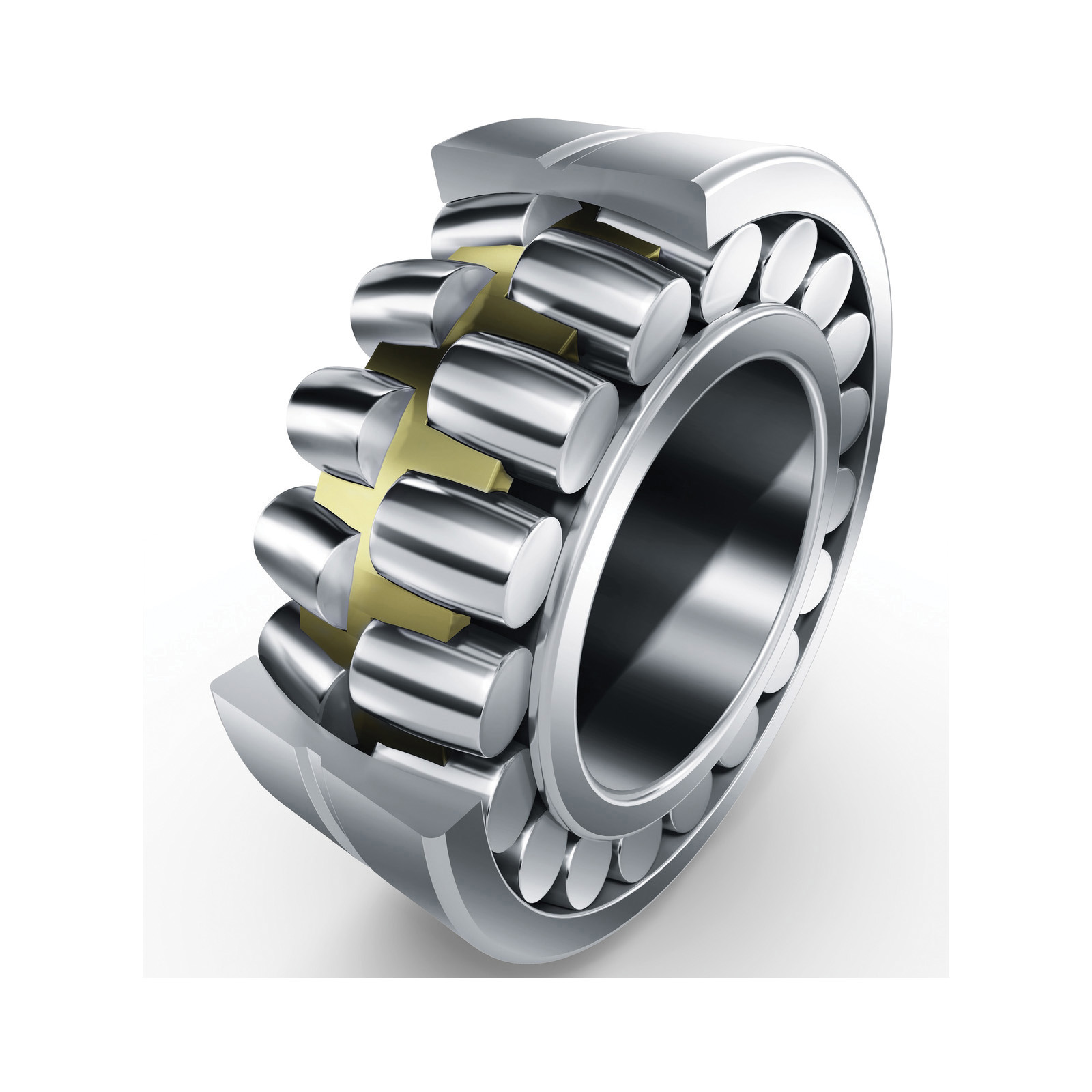

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Tapered Bore, Series: 222-E1A, 60 mm Bore, 110 mm OD, 2 Rows, 28 mm Width, Open Closure, 160000 N Load, Solid Brass Cage, 7500 rpm Maximum, -30 to 200 deg C

• Item Features 01=Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
• Item Features 02=Relatively high axial loads occur on one or both sides, in addition to high radial forces
• Item Features 03=Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
• Item Features 04=High shock type loads must be supported dynamically
• Item Features 05=Locating bearings with a very high load carrying capacity are required
• Item Features 06=One brass double comb cage, guided by rollers, inner ring with two lateral retaining ribs
• Item Features 07=X-life design
• Item Features 08=1:12 tapered bore
• Item Features 09=C3 radial internal clearance
• Item Features 10=Without central rib on inner ring
• Item Features 11=160000 N dynamic/155000 N static

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_22317E1XL_Catalog.pdf
