FAG 1209-K-TVH-C3 FAG1209KTVHC3

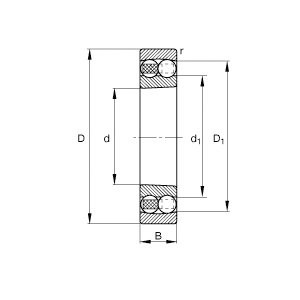

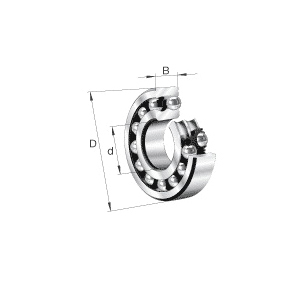

FAG 1209-K-TVH-C3 12..-K Self-Aligning Ball Bearing With Tapered Bore, 45 mm Dia Bore, 85 mm OD, 2 Rows, 19 mm W, 22000 N Dynamic/7300 N Static/455 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG1209KTVHC3
- MPN: 1209-K-TVH-C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Self-Aligning Ball Bearing, Series: 12..-K, 45 mm Bore Dia, 85 mm Outside Dia, 2 Rows, 19 mm W, Open Closure, 22000 N Dynamic/7300 N Static/455 N Fatigue, Steel Bearing, Polyamide 66 Cage, 9300 rpm Maximum, 120 deg C, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 45 mm |
| Cage Material | : | Polyamide 66 |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 22000 N Dynamic/7300 N Static/455 N Fatigue |
| Maximum Speed | : | 9300 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 85 mm |
| Series | : | 12..-K |
| Temperature Rating | : | 120 deg C |
| Width | : | 19 mm |
- Solid cage made from glass fiber reinforced polyamide 66
- Radial internal clearance larger than normal
Specification Sheet
