Fafnir® VAK1 15/16 TIMVAK1 15/16
  1. pin-int

Fafnir® VAK1 15/16 TIMVAK1 15/16

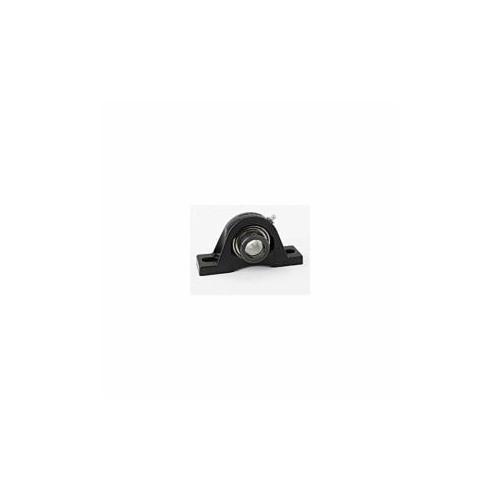

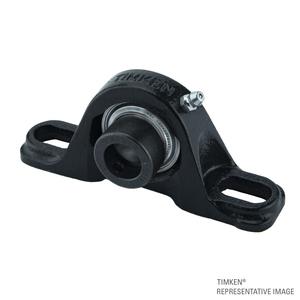

Timken® Fafnir® VAK1 15/16 VAK Normal Duty Standard Pillow Block Ball Bearing Unit, 1-15/16 in Dia Bore, 6.22 in L Bolt Center-to-Center, 2.187 in Base to Bore Centerline, 7.874 in OAL x 4.437 in OAH

  • Manufacturer: Timken
  • Brand Name: Fafnir®
  • Part Number: TIMVAK1 15/16
  • MPN: VAK1 15/16
  • UPC: 087796060845
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.

Timken® Fafnir®, VAK1 15/16, Pillow Block Ball Bearing Unit, Normal Duty Standard, Series: VAK, 1-15/16 in Bore, 6.22 in Bolt Center-to-Center Length, 2.187 in Base to Bore Centerline, 7.874 in Overall Length, 2.378 in Overall Width, 4.437 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2.189 in Base Width, Eccentric Locking Device, Molded Shroud Seal, Non-Expansion (Fixed), 8740 lb Dynamic/5210 lb Static Load, 250 deg F, 3000 rpm Maximum, Cast Iron, Uncoated

Base Width      :      2.189 in
Base to Bore Centerline      :      2.187 in
Bolt Center-to-Center Length      :      6.22 in
Bore Diameter      :      1-15/16 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Uncoated
Load Capacity      :      8740 lb Dynamic/5210 lb Static
Locking Device      :      Eccentric
Material      :      Cast Iron
Maximum Speed      :      3000 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      4.437 in
Overall Length      :      7.874 in
Overall Width      :      2.378 in
Seal Type      :      Molded Shroud
Series      :      VAK
Temperature Rating      :      250 deg F
Type      :      Normal Duty Standard
  • The streamlined and rugged VAK pillow block unit combines an engineered housing and an RA-RR extended inner-ring bearing
  • RA-RR bearing employs a positive-contact, land-riding seal and a self-locking collar
  • The pillow block can be mounted to operate in any position
  • Bearing housed units are factory pre-lubricated
  • All units are supplied with RA-RR wide-inner-ring ball bearing and locking collar
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_FLCT78_Catalog.pdf
