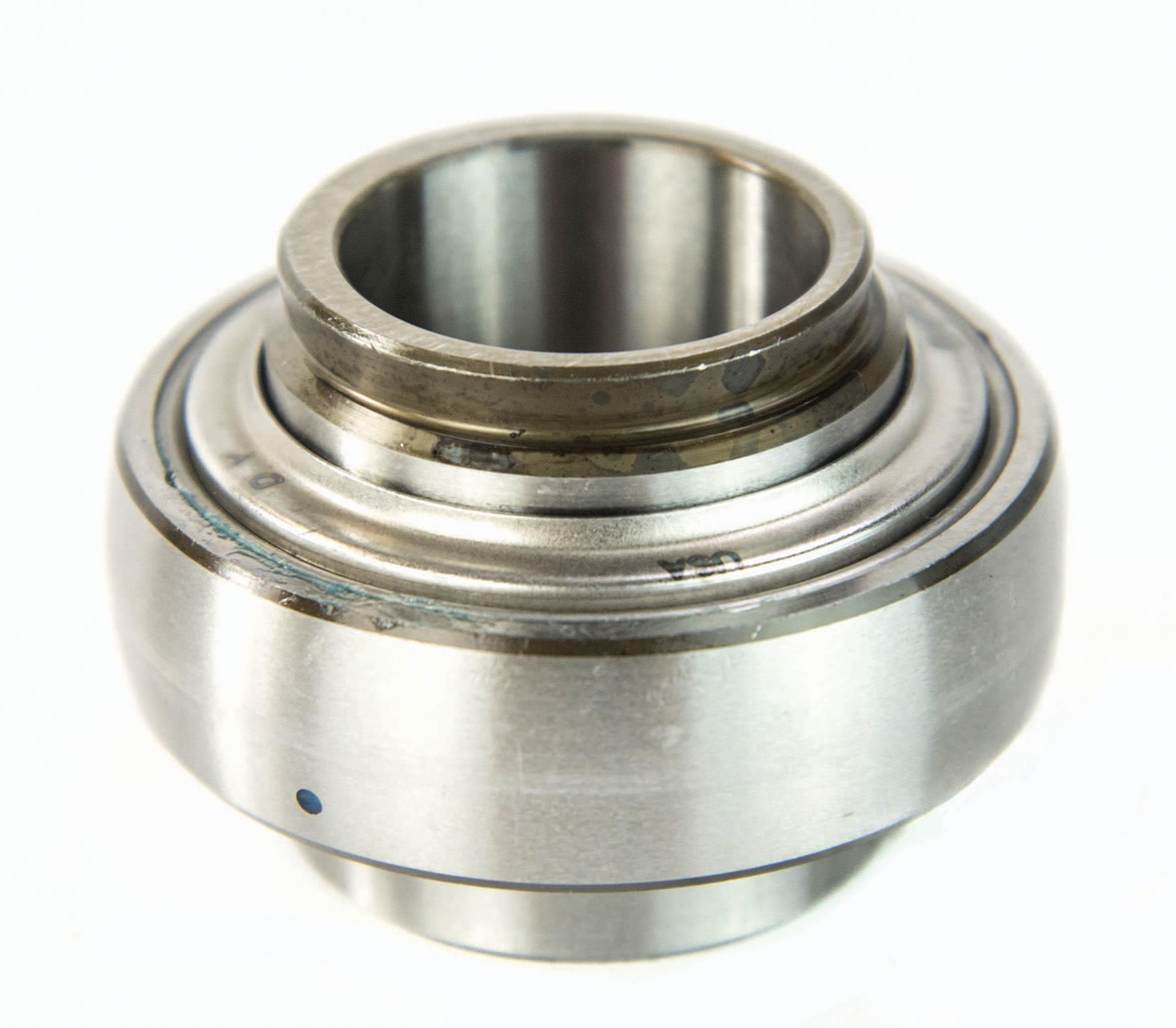

Fafnir® GY1203KRRB TIMGY1203KRRB

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications. When set screws are used, Timken® suggests using shaftguarding Technology™, a stainless-steel, hardened band that is inserted in a groove on the inner ring. When the set screws are tightened, they press against the band, tightening the grip on the shaft. Unlike traditional set screws, which can dig into the shaft, there are no nicks, raised metal or permanent shaft damage. The stainless band resists the formation of corrosion on the shaft.

Timken® Fafnir®, GY1203KRRB, Ball Insert Bearing Housed Unit, Standard Duty, Series: GY-KRRB, 2-3/16 in Bore, 3.937 in OD, 2-3/16 in Width, Double Seal Closure, 10800 lb Dynamic/6570 lb Static Load, Steel Bearing, Nylon Cage, 2260 rpm Maximum, -50 to 120 deg C, Uncoated

• This series is designed to offer extended bearing life despite demanding industrial environments
• The insert features a full-width inner-ring, providing extra support along the shaft
• The extra support feature, coupled with a flexible nylon retainer, allows the inserts to operate for extended periods with undersized shafts or in misalignment conditions
• The inserts are equipped with a three-piece seal, protecting against corrosion, contamination and fiber wrap
• The inserts also include nylon-patch set screws, resisting set screw back-out and providing superior holding power in applications with severe vibration

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_1012KRRB_Catalog.pdf
