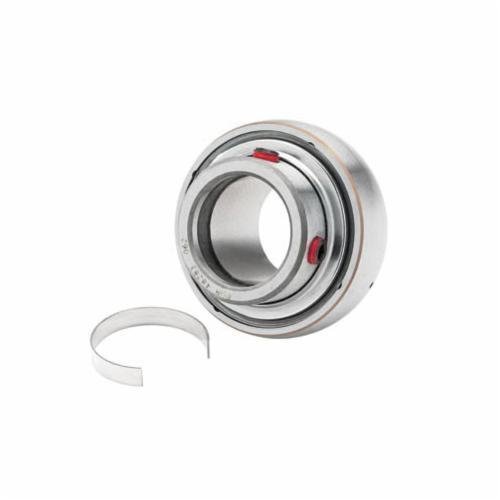

Fafnir® GY1108KRRB SGT TIMGY1108KRRB

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications. When set screws are used, Timken® suggests using shaftguarding Technology™, a stainless-steel, hardened band that is inserted in a groove on the inner ring. When the set screws are tightened, they press against the band, tightening the grip on the shaft. Unlike traditional set screws, which can dig into the shaft, there are no nicks, raised metal or permanent shaft damage. The stainless band resists the formation of corrosion on the shaft.

Timken® Fafnir®, GY1108KRRB SGT, Ball Insert Bearing Housed Unit, Standard Duty, Series: GY-KRRB, 1-1/2 in Bore, 3.1496 in OD, 1-15/16 in Width, Double Seal Closure, 8130 lb Dynamic00000000001/4460 lb Static Load, Steel Bearing, Nylon Cage, 3500 rpm Maximum, -50 to 120 deg C, Uncoated

• Incorporates shaft guarding technology, which reduces replacement time, provides shaft protection and prolongs the life of the shaft
• The Y-series set screw bearing has increased shaft support
• The Y-series features super-finished raceways, grade-10 balls and anti-back-out nylon-patch set screws, they are factory pre-lubricated and relubricatable
• The set screw mounting feature is ideal for reversing load applications
• Wide-inner-ring

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_1012KRRB_Catalog.pdf
