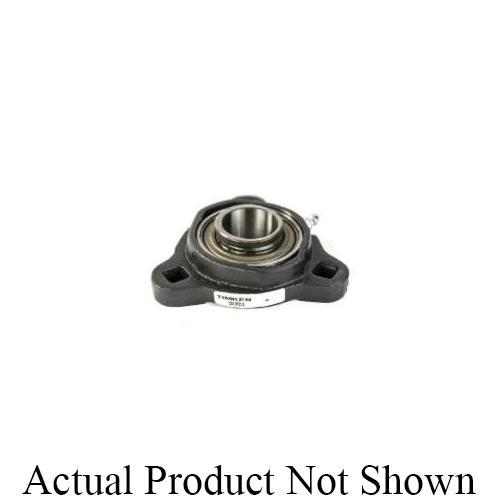

Fafnir® GVFD1 1/4 TIMGVFD1 1/4
Timken® Fafnir® GVFD1 1/4 GVFD Normal Duty Relubricatable Flange Mount Ball Bearing Unit, 1-1/4 in Dia Bore, 3-15/16 in L Bolt Center-to-Center, 3-Bolt Flange Mount, 4-13/16 in OAL/Dia
- Manufacturer: Timken
- Brand Name: Fafnir®
- Part Number: TIMGVFD1 1/4
- MPN: GVFD1 1/4
- UPC: 087796058378
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken Fafnir housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line
Timken® Fafnir®, GVFD1 1/4, Flange Mount Ball Bearing Unit, Normal Duty Relubricatable, Series: GVFD, 1-1/4 in Bore, 3-15/16 in Bolt Center-to-Center Length, 3-Bolt Flange Mounting, 4-13/16 in Overall Length/Diameter, 1-21/32 in Overall Depth, 1.657 in Overall Height, Eccentric Locking Device, Steel Bearing, 6400 lb Dynamic/3440 lb Static Load, 3930 rpm Maximum, -30 to 275 deg F, Uncoated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 3-15/16 in |
| Bore Diameter | : | 1-1/4 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 3-Bolt |
| Load Capacity | : | 6400 lb Dynamic/3440 lb Static |
| Locking Device | : | Eccentric |
| Maximum Speed | : | 3930 rpm |
| Overall Depth | : | 1-21/32 in |
| Overall Height | : | 1.657 in |
| Overall Length/Diameter | : | 4-13/16 in |
| Series | : | GVFD |
| Temperature Rating | : | -30 to 275 deg F |
| Type | : | Normal Duty Relubricatable |
- The malleable-iron flange cartridges provide self-alignment and rigid support
- The mounting bolt holes are interchangeable with pressed-steel flangette units of corresponding size
