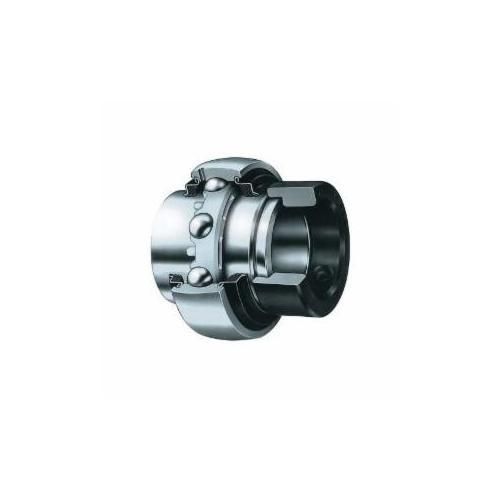

Fafnir® GC1200KPPB2 TIMGC1200KPPB2

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications. When set screws are used, Timken® suggests using shaftguarding Technology™, a stainless-steel, hardened band that is inserted in a groove on the inner ring. When the set screws are tightened, they press against the band, tightening the grip on the shaft. Unlike traditional set screws, which can dig into the shaft, there are no nicks, raised metal or permanent shaft damage. The stainless band resists the formation of corrosion on the shaft.

Timken® Fafnir®, GC1200KPPB2, Ball Insert Bearing Housed Unit, Series: 200, 1.754 in Bore, 3.93 in OD, 1 Rows, 2-1/4 in Width, Single Sealed Closure, 10800 lb Dynamic/6570 lb Static Load, Steel Bearing, -50 to 120 deg C, Plated

• These bearing are relubricatable with spherical outside diameters and shroud-seals
• The metal shroud maintains tight seal contact against the inner-ring and shields the rubber seals from damage because of dirt or fiber wrap
• The concentric-collar is locked to the shaft by two set screws located 120 deg apart, mated with threaded holes in the collar and drilled holes in the bearing inner-ring
• The extra-wide design provides additional shaft support and extra-large grease capacity
• GC-KRRB series bearings have spherical outside diameters

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_1012KRRB_Catalog.pdf
