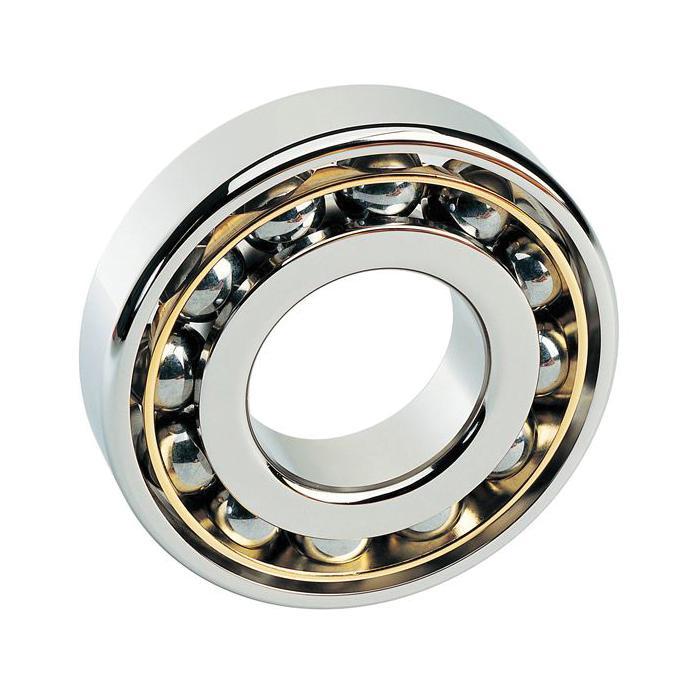

Fafnir® 7405W TIM7405W
Timken® Fafnir® 7405W 7400 Heavy Duty Straight Bore Angular Contact Ball Bearing, 25.0012 mm Dia Bore, 80 mm Dia Outside, 1 Rows, 21 mm W, 20 deg, 10600 lb Dynamic/5850 lb Static Load
- Manufacturer: Timken
- Brand Name: Fafnir®
- Part Number: TIM7405W
- Alt Part Number: 100018531
- MPN: 7405W
- UPC: 087796046948
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Timken® Angular Contact Ball Bearings are designed to handle high speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our products offering includes a range of single-row universally matched, single-row standard and double-row products with different cage types, contact angles and tolerances.
Timken® Fafnir®, 7405W, Angular Contact Ball Bearing, Heavy Duty Straight Bore, Series: 7400, 25.0012 mm Bore, 80 mm OD, 1 Rows, 21 mm Width, 20 deg Contact Angle, Open Closure, 10600 lb Dynamic/5850 lb Static Load, Steel Bearing, 96724.42 rpm Grease/145086.64 rpm Oil Maximum, -50 to 120 deg C
| Bearing Material | : | Steel |
| Bore Diameter | : | 25.0012 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Contact Angle | : | 20 deg |
| Load Capacity | : | 10600 lb Dynamic/5850 lb Static |
| Maximum Speed | : | 96724.42 rpm Grease/145086.64 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 80 mm |
| Series | : | 7400 |
| Temperature Rating | : | -50 to 120 deg C |
| Type | : | Heavy Duty Straight Bore |
| Width | : | 21 mm |
- Enhanced raceway finish
- Quiet operation
- Dimensionally interchangeable
