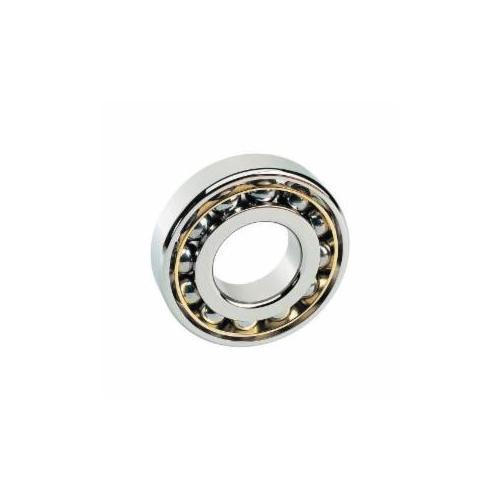

Fafnir® 7212WN SU TIM7212WNSU

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row conrad bearings can accommodate thrust in both directions.

Timken® Fafnir®, 7212WN SU, Angular Contact Ball Bearing, Light Duty, Series: 7200, 60 mm Bore, 110 mm OD, 1 Rows, 22 mm Width, 40 deg Contact Angle, Open Closure, 12600 lb Dynamic/10000 lb Static Load, Steel Bearing, Pressed Brass Cage, 4720 rpm Maximum, -50 to 120 deg C, Uncoated

• Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads
• Dimensionally interchangeable with the radial 200 series
• 7000WN product family includes a refined bore diameter
• A single bearing is suggested for applications in which the thrust load is in one direction or in the case of combined loads, the thrust load is high in relation to the radial load
• A duplex pair is suggested for applications where thrust is present in both directions or where axial displacement of the shaft must be restricted
• For exceptionally high thrust loads in one direction, a tandem pair can be used, opposed by a third bearing
• Sizes 7201K through 7203WN have a 20 deg contact angle and a nylon cage
• Sizes 7204WN through 7218WN have a 40 deg contact angle and a one-piece, ball-piloted, pressed-brass cage
• Larger sizes 7219WN through 7230WN have a 40 deg contact angle and a one-piece, outer-ring piloted high-strength machined bronze cage
