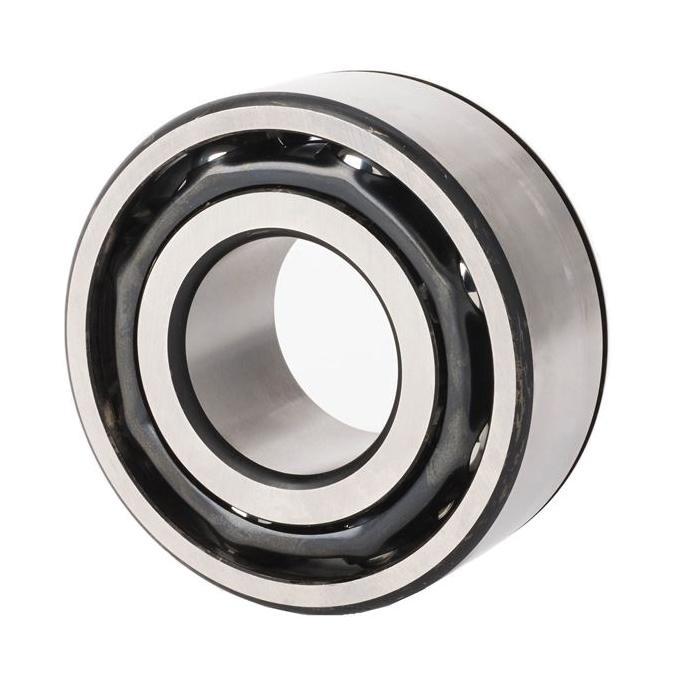

Fafnir® 5307DW TIM5307DW
Timken® Fafnir® 5307DW 5300 Medium Duty Straight Bore Angular Contact Ball Bearing, 35.0012 mm Dia Bore, 80 mm Dia Outside, 2 Rows, 38.1 mm W, 30 deg, 15300 lb Dynamic/10800 lb Static Load
- Manufacturer: Timken
- Brand Name: Fafnir®
- Part Number: TIM5307DW
- Alt Part Number: 100070548
- MPN: 5307DW
- UPC: 087796302167
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Timken® Angular Contact Ball Bearings are designed to handle high speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our products offering includes a range of single-row universally matched, single-row standard and double-row products with different cage types, contact angles and tolerances.
Timken® Fafnir®, 5307DW, Angular Contact Ball Bearing, Medium Duty Straight Bore, Series: 5300, 35.0012 mm Bore, 80 mm OD, 2 Rows, 38.1 mm Width, 30 deg Contact Angle, Single Shield Closure, 15300 lb Dynamic/10800 lb Static Load, Steel Bearing, 110433.78 rpm Grease/132520.54 rpm Oil Maximum, -50 to 120 deg C
| Bearing Material | : | Steel |
| Bore Diameter | : | 35.0012 mm |
| Cage Material | : | Steel |
| Closure Type | : | Single Shield |
| Contact Angle | : | 30 deg |
| Load Capacity | : | 15300 lb Dynamic/10800 lb Static |
| Maximum Speed | : | 110433.78 rpm Grease/132520.54 rpm Oil |
| Number of Rows | : | 2 |
| Outside Diameter | : | 80 mm |
| Series | : | 5300 |
| Temperature Rating | : | -50 to 120 deg C |
| Type | : | Medium Duty Straight Bore |
| Width | : | 38.1 mm |
- Enhanced raceway finish
- Quiet operation
- Dimensionally interchangeable
