Fafnir® 5212K C3 TIM5212K

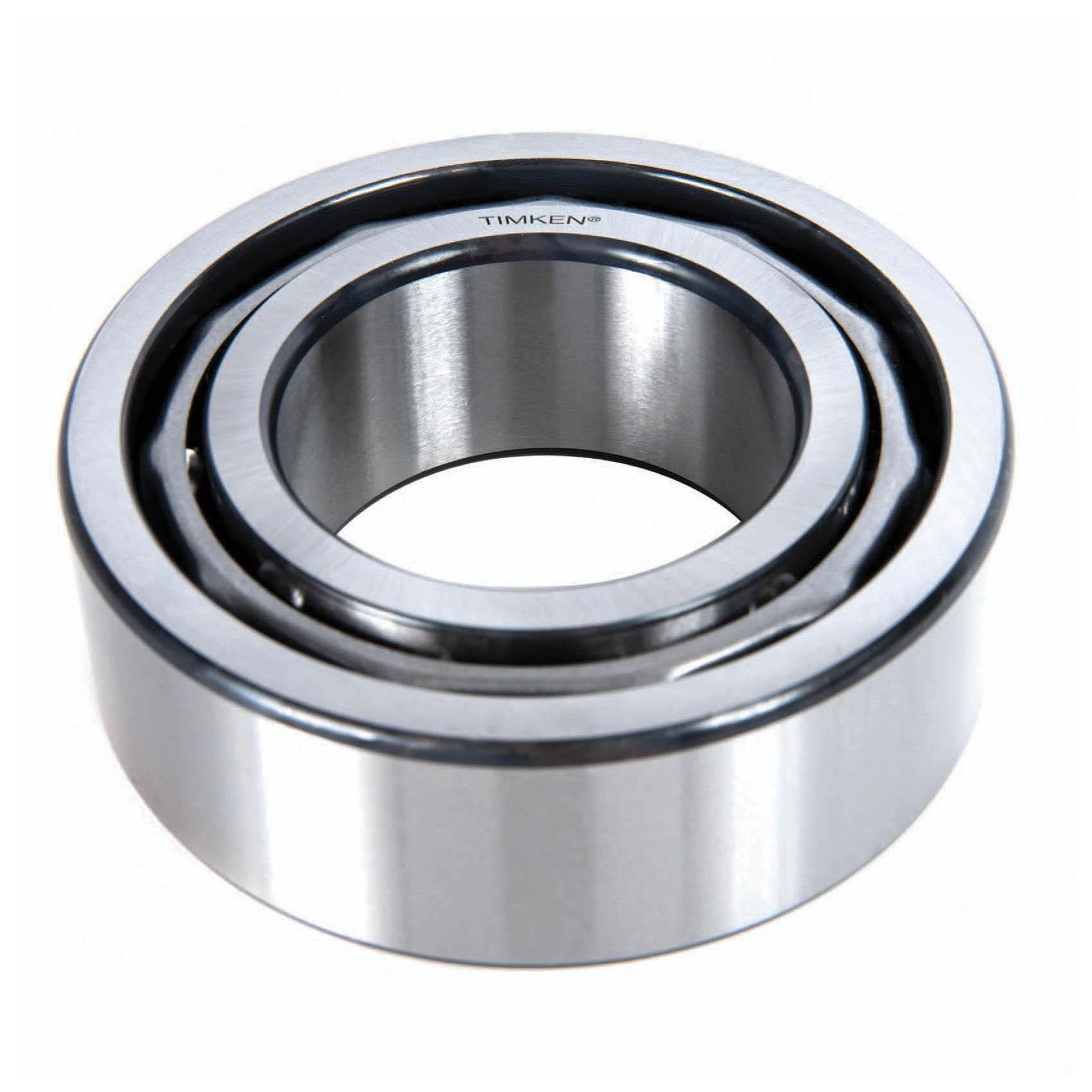

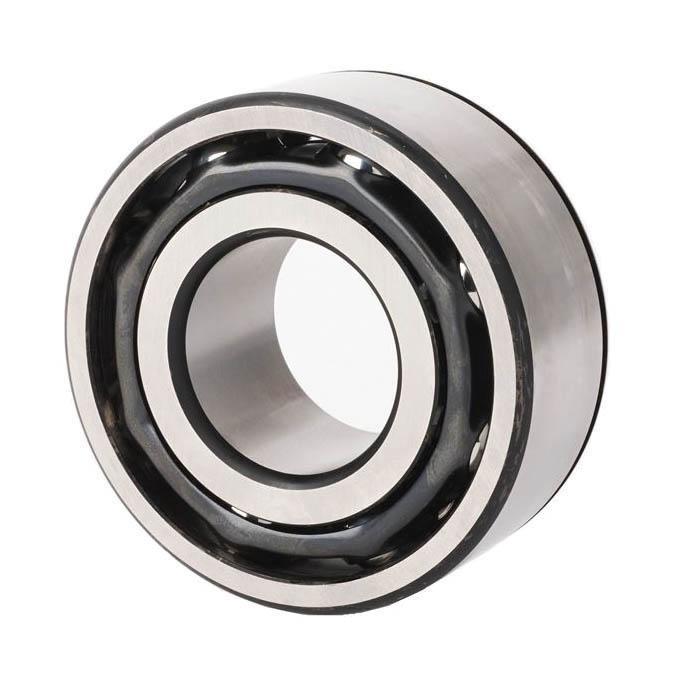

Timken® Fafnir® 5212K C3 5200 Light Duty Straight Bore Angular Contact Ball Bearing, 60 mm Dia Bore, 110 mm Dia Outside, 2 Rows, 36.5252 mm W, 20 deg, 17400 lb Dynamic/14000 lb Static Load
- Manufacturer: Timken
- Brand Name: Fafnir®
- Part Number: TIM5212K
- Alt Part Number: 100013037
- MPN: 5212K C3
- UPC: 087796043596
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Timken® Angular Contact Ball Bearings are designed to handle high speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our products offering includes a range of single-row universally matched, single-row standard and double-row products with different cage types, contact angles and tolerances.
Timken® Fafnir®, 5212K C3, Angular Contact Ball Bearing, Light Duty Straight Bore, Series: 5200, 60 mm Bore, 110 mm OD, 2 Rows, 36.5252 mm Width, 20 deg Contact Angle, Open Closure, 17400 lb Dynamic/14000 lb Static Load, Steel Bearing, 74704.91 rpm Grease/89645.89 rpm Oil Maximum, -50 to 120 deg C
| Bearing Material | : | Steel |
| Bore Diameter | : | 60 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Contact Angle | : | 20 deg |
| Load Capacity | : | 17400 lb Dynamic/14000 lb Static |
| Maximum Speed | : | 74704.91 rpm Grease/89645.89 rpm Oil |
| Number of Rows | : | 2 |
| Outside Diameter | : | 110 mm |
| Series | : | 5200 |
| Temperature Rating | : | -50 to 120 deg C |
| Type | : | Light Duty Straight Bore |
| Width | : | 36.5252 mm |
- Enhanced raceway finish
- Quiet operation
- Dimensionally interchangeable
