Fafnir® 012 8012S TIM012-8012S

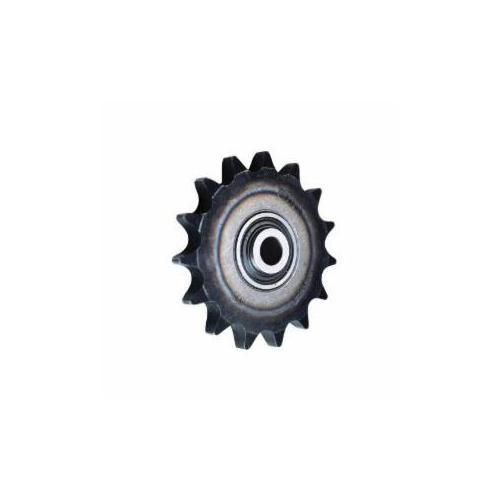

Timken® Fafnir® 012 8012S Round Bore Standard Duty Wide Inner Ring Roller Chain Idler Sprocket, 0.75 in Dia Bore, 4.332 in Dia Outside, #80 Chain, 12 Teeth, Sintered Steel
- Manufacturer: Timken
- Brand Name: Fafnir®
- Part Number: TIM012-8012S
- MPN: 012 8012S
- UPC: 087796119079
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
A pressed-steel pulley and a Timken® precision ball bearing with rubber seals are combined to make a self contained unit. Two pulley designs are available. One for V-belts and another for the backs of V-belts. A chain idler, identical in construction to the flat idler, is available, with the addition of an assembled rubber tire (part number A-10927). The rubber tire cushions the chain, preventing undue wear on the pulley surface or chain.
Timken® Fafnir®, 012 8012S, Roller Chain Idler Sprocket, Round Bore Standard Duty Wide Inner Ring, 0.75 in Bore, 4.332 in OD, #80 Chain, 12 Teeth, 1 in Pitch Diameter, 1.048 in Diameter Hub, 0.61 in Length Through Bore, Sintered Steel
| Bore Diameter | : | 0.75 in |
| Chain Size | : | #80 |
| Hub Diameter | : | 1.048 in |
| Length Through Bore | : | 0.61 in |
| Material | : | Sintered Steel |
| Number of Teeth | : | 12 |
| Outside Diameter | : | 4.332 in |
| Pitch Diameter | : | 1 in |
| Type | : | Round Bore Standard Duty Wide Inner Ring |
- The sintered steel sprockets are hardened and perform well at an economical cost
- The Roller Chain Idler Sprocket replaces the hardened plate steel sprockets on most applications
- All units are non-relubricatable
