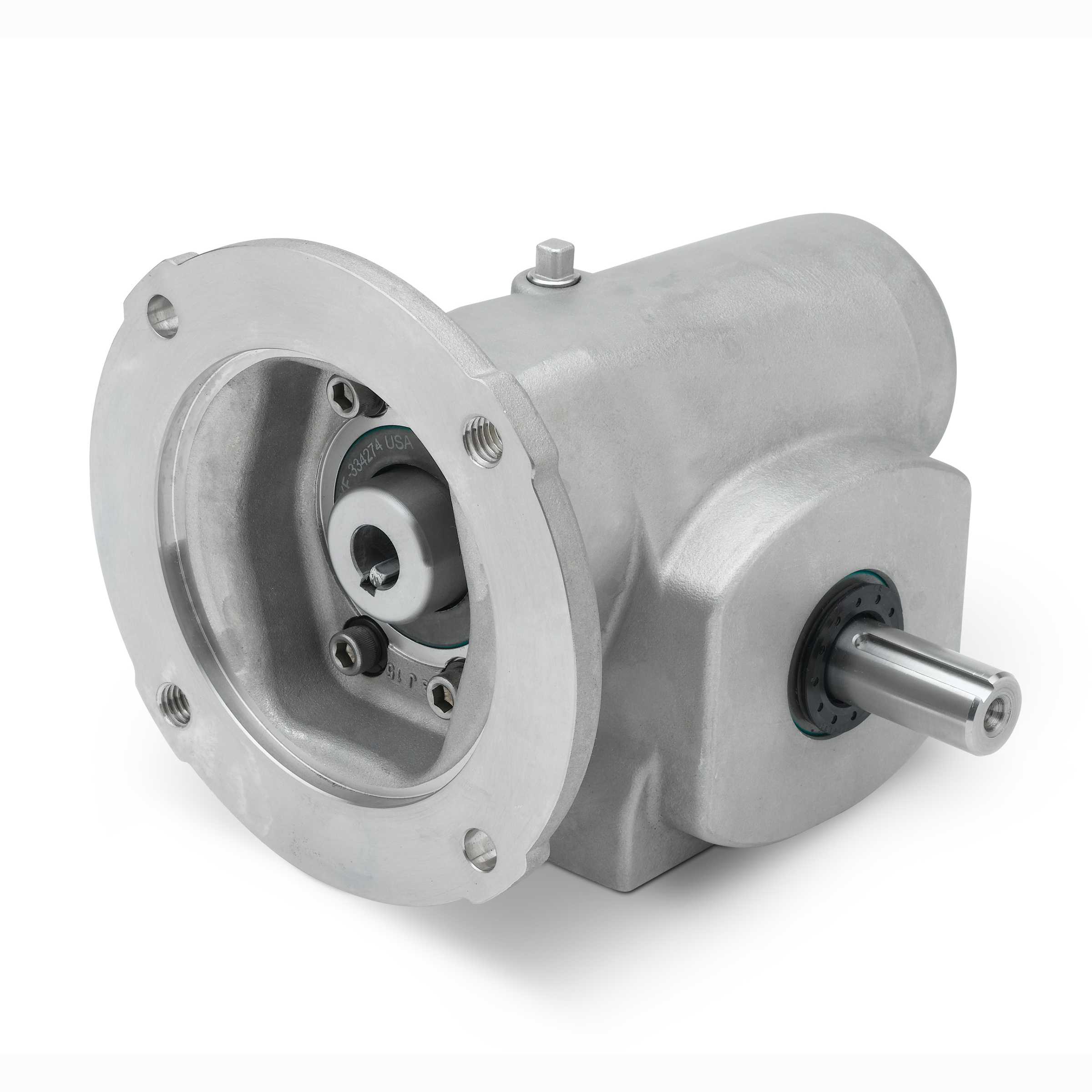

Dodge® SS20Q40R56 DODSS20Q40R56

Dodge® Tigear-2® Ultra-Kleen® SS20Q40R56 Size 20 Right Angle Washdown Speed Reducer, Quill Input, Solid B Shaft Output, 1.49 hp, 40:1 Gear Ratio, 58 rpm Maximum Output, 802 in-lb Torque Rating

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DODSS20Q40R56
  • MPN: SS20Q40R56
  • UPC: 782477045653
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Ultra-Kleen® Tigear-2® is an all stainless steel worm gear reducer engineered for long life in sanitary washdown environments. Capable of withstanding high pressure washdowns and caustic chemicals, Ultra-Kleen® Tigear-2® is the ideal solution for food handling industrial applications.

Dodge® Tigear-2® Ultra-Kleen® Right Angle Washdown Speed Reducer, Size 20, 40:1 Gear Ratio, 1.49 hp, Quill Input, Solid B Shaft Output, 1 in Output, 58 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 802 in-lb, 2 in Centre Distance, 1-3/4 in L x 1/4 in W x 1/4 in H Keyway, 60 to 95 % Efficiency, Right Hand, Synthetic Oil Lubrication, Stainless Steel, 8.6 in L x 9.38 in W x 7.5 in H

Centre Distance      :      2 in
Dimensions      :      8.6 in L x 9.38 in W x 7.5 in H
Efficiency      :      60 to 95 %
Gear Ratio      :      40:1
Horsepower      :      1.49 hp
Input Maximum Speed      :      1750 rpm
Input Type      :      Quill
Keyway Size      :      1-3/4 in L x 1/4 in W x 1/4 in H
Lubrication Type      :      Synthetic Oil
Material      :      Stainless Steel
Output Maximum Speed      :      58 rpm
Output Size      :      1 in
Output Type      :      Solid B Shaft
Rotation Type      :      Right Hand
Torque Rating      :      802 in-lb
Type      :      Size 20
  • Worm shaft machining process increases gear precision and accuracy by more than twice the norm
  • Precise plunge grinding process eliminates invisible lead and assures cool running
  • Higher torque capacity
  • Greater efficiency
  • New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
  • New rounded housing design prevents accumulation of material or liquid
  • Laser etched nameplate
  • Tapered roller bearings on output shaft
  • Critical mounting dimensions are the same as standard Tigear-2® reducers
  • 300 series stainless steel construction
  • XT harsh duty output seals
