Dodge® MVS210X1-5/8 DODMVS210X1-5/8
  1. pin-int

Dodge® MVS210X1-5/8 DODMVS210X1-5/8

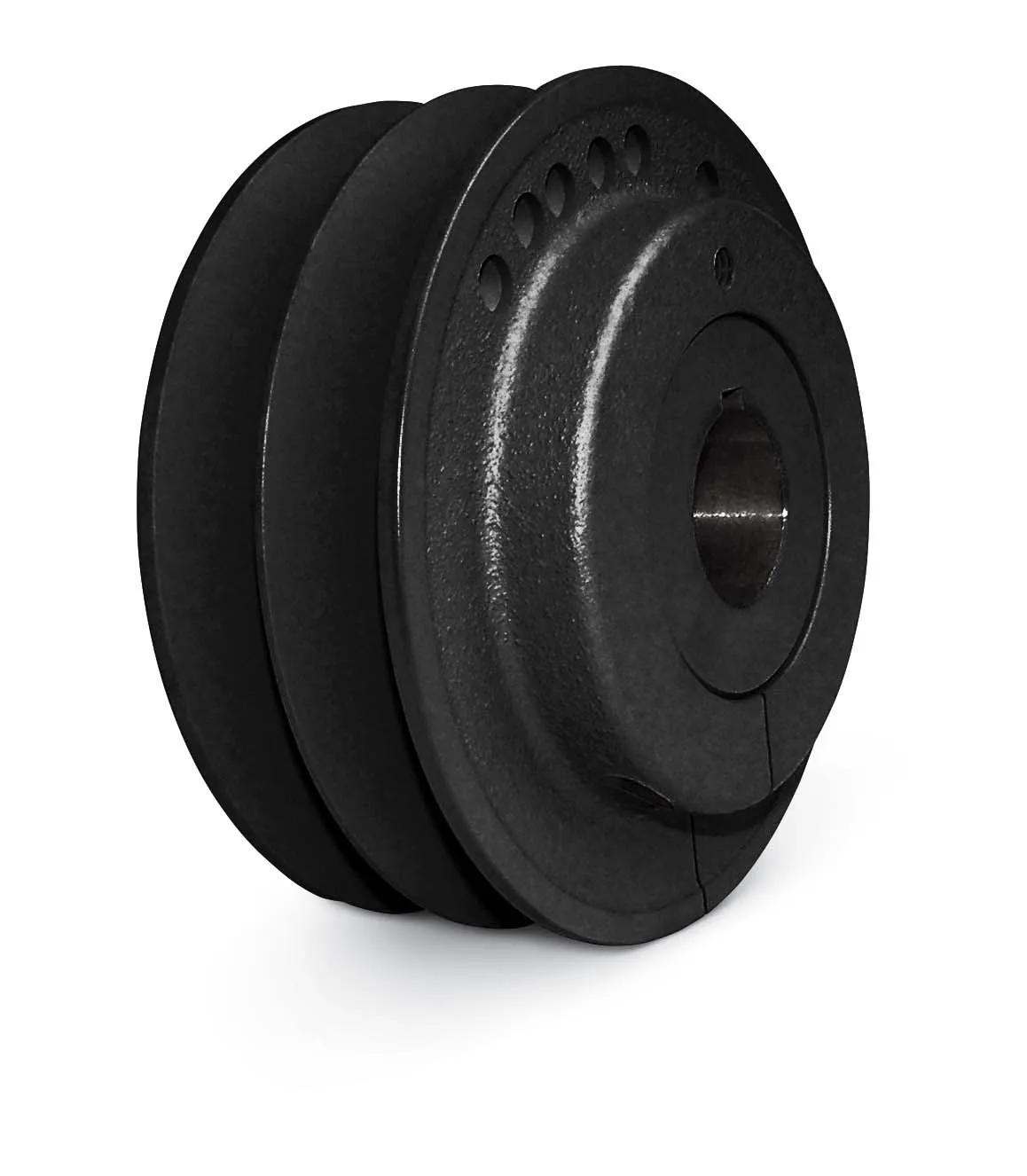

Dodge® MVS210X1-5/8 Heavy-Duty Variable Pitch Sheave, 1-5/8 in Bore, 8.268 in OD, 6.65 to 7.88 in (A)/6.94 to 8.37 in (B)/6.78 to 7.39 in (3V)/6.79 to 8.22 in (5V) Dia Pitch, 1.73 to 2.59 in W Face, Alternate Part Number: JVS210 X 1-5/8

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DODMVS210X1-5/8
  • Alt Part Number: JVS210 X 1-5/8
  • MPN: MVS210X1-5/8
  • UPC: 775829030278
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Variable Pitch Sheave, Heavy-Duty, Series: MVS, 1-5/8 in Bore, 8.268 in OD, 6.65 to 7.88 in (A)/6.94 to 8.37 in (B)/6.78 to 7.39 in (3V)/6.79 to 8.22 in (5V) Pitch Diameter, 1.73 to 2.59 in Face Width, 4.13 in Overall Length, For Use With: A, B, 3V, 5V Cross Section Belt, Cast Iron, Gray

Bore Diameter      :      1-5/8 in
Face Width      :      1.73 to 2.59 in
Finish      :      Gray
Material      :      Cast Iron
Outside Diameter      :      8.268 in
Overall Length      :      4.13 in
Pitch Diameter      :      6.65 to 7.88 in (A)/6.94 to 8.37 in (B)/6.78 to 7.39 in (3V)/6.79 to 8.22 in (5V)
Series      :      MVS
Suitable For Use With      :      A, B, 3V, 5V Cross Section Belt
Type      :      Heavy-Duty
  • Designed for up to 40 hp at 1750 rpm
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_MVS210X1_5_8_Specification_Sheet.pdf
