Dodge® MVL25X1/2 DODMVL251/2
  1. pin-int

Dodge® MVL25X1/2 DODMVL251/2

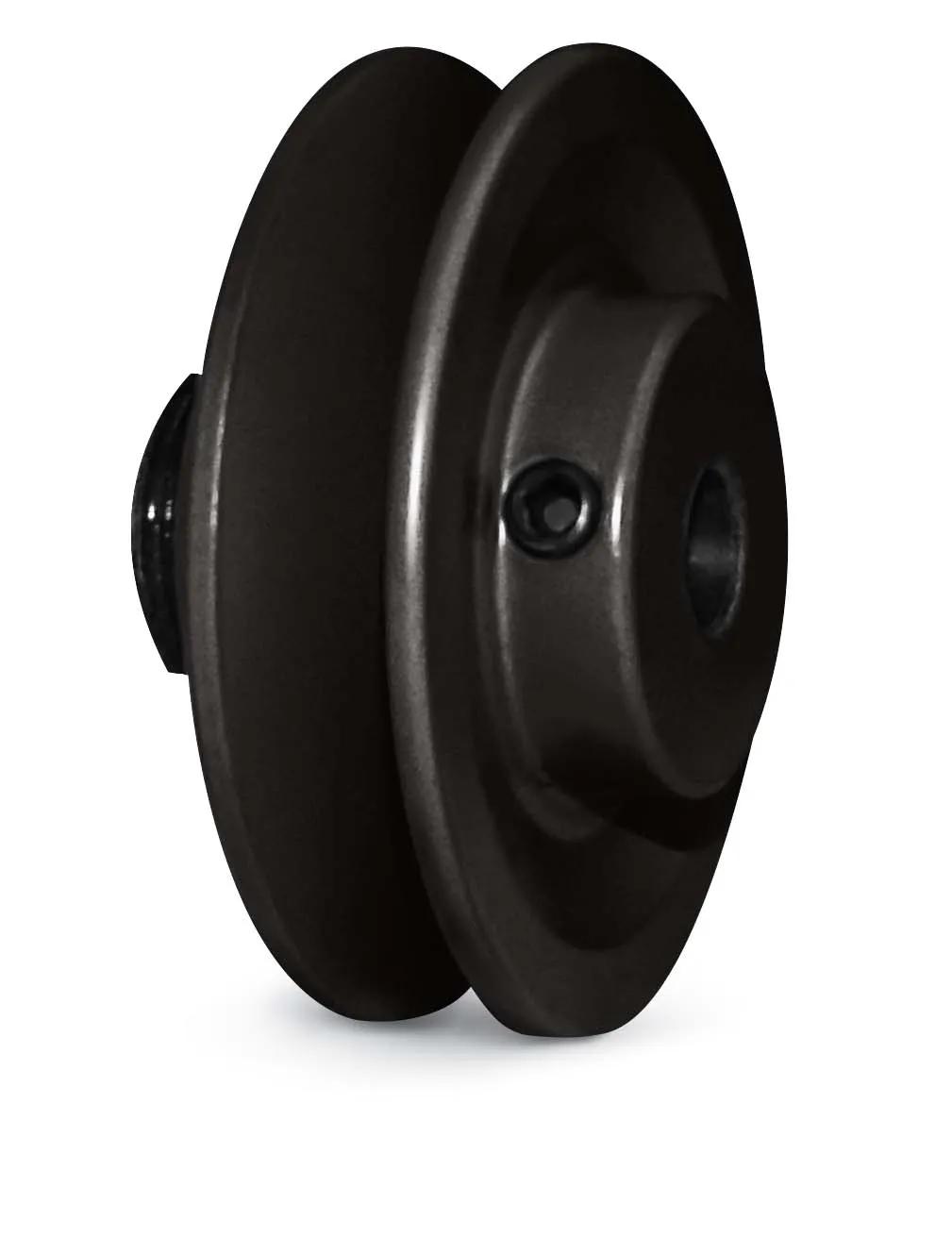

Dodge® MVL25X1/2 Variable Pitch Sheave, 1/2 in Bore, 2-1/2 in OD, 1 Grooves, 1.85 to 2.65 in (3L)/1.85 to 2.45 in (A/4L)/2.35 to 2.55 in (B/5L) Dia Pitch, 19/32 to 27/32 in W Face, Alternate Part Number: 1VL25X 1/2

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DODMVL251/2
  • Alt Part Number: 1VL25X 1/2
  • MPN: MVL25X1/2
  • UPC: 775829030001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Variable Pitch Sheave, Series: MVL, 1/2 in Bore, 2-1/2 in OD, 1.85 to 2.65 in (3L)/1.85 to 2.45 in (A/4L)/2.35 to 2.55 in (B/5L) Pitch Diameter, 1 Grooves, 19/32 to 27/32 in Face Width, 1-1/2 in Overall Length, For Use With: 3L/A, 4L/B, 5L Cross Section Belts

Bore Diameter      :      1/2 in
Face Width      :      19/32 to 27/32 in
Number of Grooves      :      1
Outside Diameter      :      2-1/2 in
Overall Length      :      1-1/2 in
Pitch Diameter      :      1.85 to 2.65 in (3L)/1.85 to 2.45 in (A/4L)/2.35 to 2.55 in (B/5L)
Series      :      MVL
Suitable For Use With      :      3L/A, 4L/B, 5L Cross Section Belts
  • Designed for applications up to 5 hp
  • Designed to be used with the MFAL series
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_146401_Catalog.pdf
