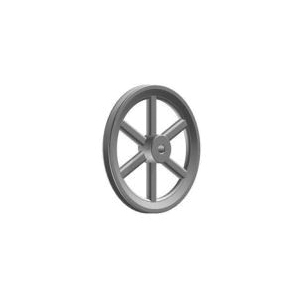

Dodge® MAL69 DODMAL69
Dodge® MAL69 Type 5 Arm Light Duty Single Groove Sheave, QD® Bushed Bore, 6.95 in OD, 6.36 in (3L)/6.7 in (A/4L) Dia Pitch, Alternate Part Number: AK71H
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DODMAL69
- Alt Part Number: AK71H
- MPN: MAL69
- UPC: 775829027193
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
All Dodge® V-drive sheaves are manufactured to ISO 9002 quality standards with precision machining that meets or exceeds joint RMA/MPTA industry standards for smooth operation and extended belt life. This provides low economical costs per HP transmitted due to shock load and vibration isolation creating clean, quiet operation.
Dodge® Single Groove Sheave, Type 5 Arm Light Duty, QD® Bushed Bore, 6.95 in OD, 6.36 in (3L)/6.7 in (A/4L) Pitch Diameter, L Bushing, For Use With: A/3L/4L Cross Section Belts, Cast Iron, Gray
| Bore Type | : | QD® Bushed |
| Bushing Type | : | L |
| Finish | : | Gray |
| Material | : | Cast Iron |
| Outside Diameter | : | 6.95 in |
| Pitch Diameter | : | 6.36 in (3L)/6.7 in (A/4L) |
| Suitable For Use With | : | A/3L/4L Cross Section Belts |
| Type | : | Type 5 Arm Light Duty |
- Feature high quality, gray iron construction with corrosion-resistant finish
- Static balanced for rim speeds up to 6500 fpm
- Stock drive selections covering 1 hp to over 1000 hp application range
- 92 to 95% drive efficiency is typical
Line Drawing
