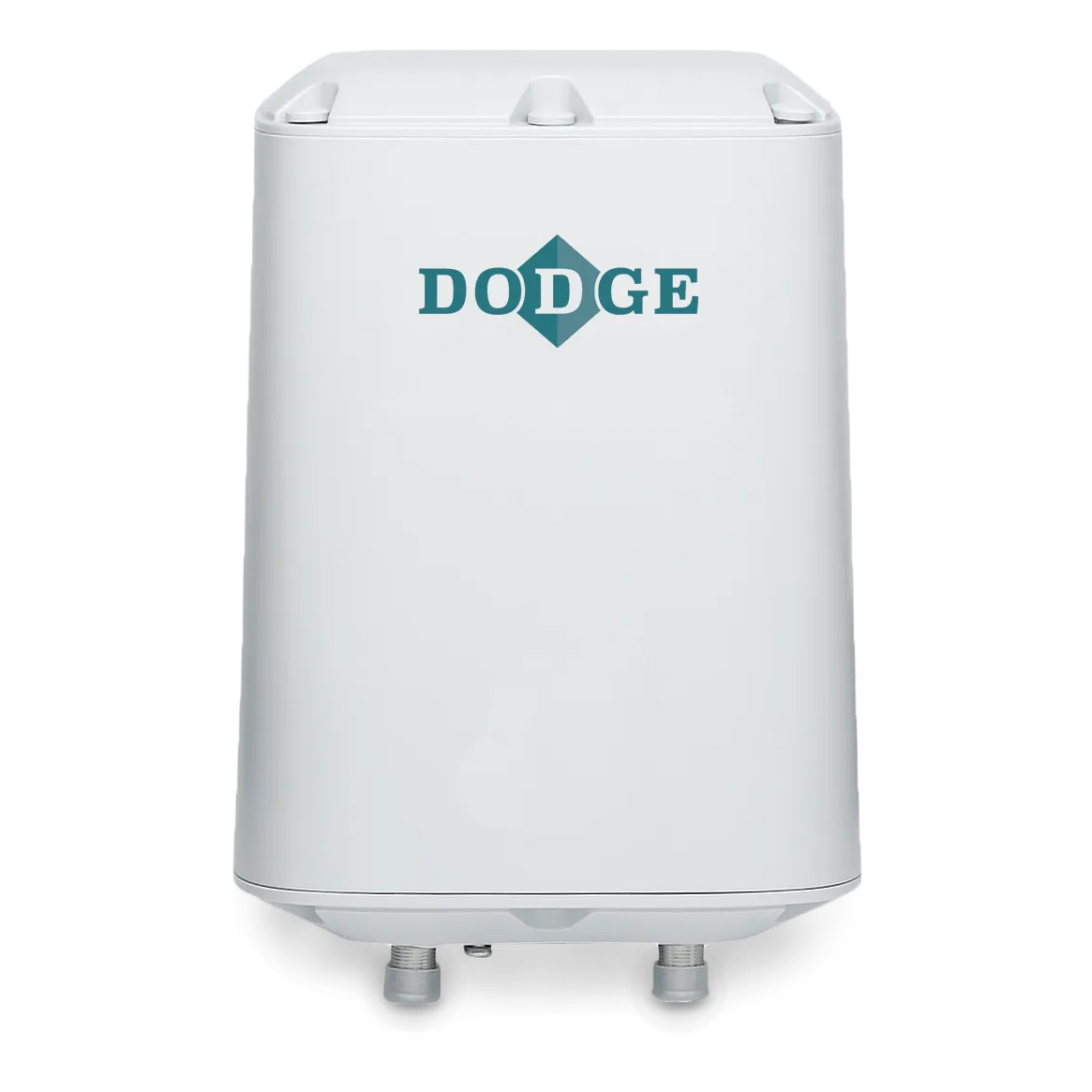

Dodge® 749972 is a gateway.
Dodge 749972 is an OPTIFY X2000 industrial IoT gateway for automatic collection and upload of Dodge sensor data to the OPTIFY condition-monitoring platform. The standard gateway supports Ethernet or 2.4/5 GHz Wi-Fi internet connectivity and is designed for indoor or outdoor industrial deployment. Specs: X2000; Ethernet/Wi-Fi; Bluetooth Low Energy 4.0/4.1/4.2/5.0; OPTIFY signal range up to 800 ft; supports up to 75 devices; 10/100BASE-T Ethernet; USB 2.0; PoE 802.3af/at; IP66; 186 x 159 x 254 mm; -40 to 149°F operating temperature.
| Antenna Type | : | 5.7 dBi vertical-polarized omni-directional antenna |
| Data Transfer Rate | : | 10/100 Mbps |
| Dimensions | : | 186 x 159 x 254 mm |
| Enclosure Type | : | Weatherproof indoor/outdoor, IP66-rated |
| Environmental Conditions | : | IP66; -40 to 149°F operating; 0-90% RH non-condensing |
| Frequency Rating | : | Bluetooth 2.400-2.483; Wi-Fi 2.4/5 |
| Interface | : | 10/100BASE-T Ethernet; 802.11 a/b/g/n/ac Wi-Fi; USB 2.0 |
| Port Type | : | RJ-45 Ethernet; USB 2.0 |
| Power Output | : | Bluetooth TX 3-19 dBm |
| Protocol | : | Ethernet or Wi-Fi |
| Sensitivity | : | Bluetooth RX -105 dBm |
| Series | : | X2000 |
| Suitable For Use With | : | Dodge OPTIFY sensors and OPTIFY condition-monitoring platform |
| Type | : | Standard Industrial IoT Gateway |
- Standard X2000 gateway for automatic collection and upload of Dodge sensor data
- Ethernet or 2.4/5 GHz Wi-Fi internet connectivity
- Supports continuous data collection from up to 75 OPTIFY devices
- OPTIFY wireless sensor signal range up to 800 ft
- 10/100BASE-T Ethernet, USB 2.0 and PoE 802.3af/at support
- IP66-rated enclosure for indoor or outdoor installations
- Operating temperature range of -40 to 149°F
