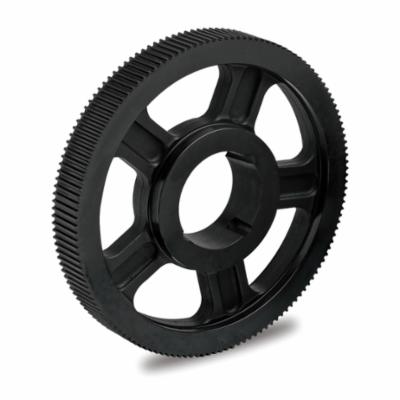

Dodge® 482052 DOD482052

The Dodge® high torque HT500 synchronous drive product line utilizes a modified curvilinear tooth profile to delivers high torque, low maintenance and high energy efficiency with less overhung load than V-belt drives. The HT500 product family features a complete offering of synchronous sprockets with shaft attachment options including taper-lock and QD bushings (fin fan), as well as minimum plain bore sprockets (MPB) and idler sprockets available from stock.

Dodge® High Torque Belt Sprocket, Type A1F, Series: HT500, Taper-Lock® Bore, 1/2 to 2-1/8 in Bore Dia, 4.802 in Outside Dia, 4.912 in, 28 Grooves, 14 mm Pitch, 2.06 in Face Width, 5.402 in Flange Dia, Taper-Lock® Bushing

• 5% or more energy efficient
• More torque with less belts
• Compact design
• Less maintenance
• Less belt pull
• Synchronous belts do not need to be re-tensioned after it is installed HT500 belt runs slip free requiring less maintenance and re-tensioning
• HT500 belts operate in wet, dusty and oily environments, it also has the capability to handle higher temperature than V-belts
• No lubrication required when compared to roller chain drives savings opportunity
• Ideal to convert legacy 20 mm HTD drive system cost savings opportunity with drive optimization

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_482052_Specification_Sheet.pdf
