Dodge® 481945 DOD481945

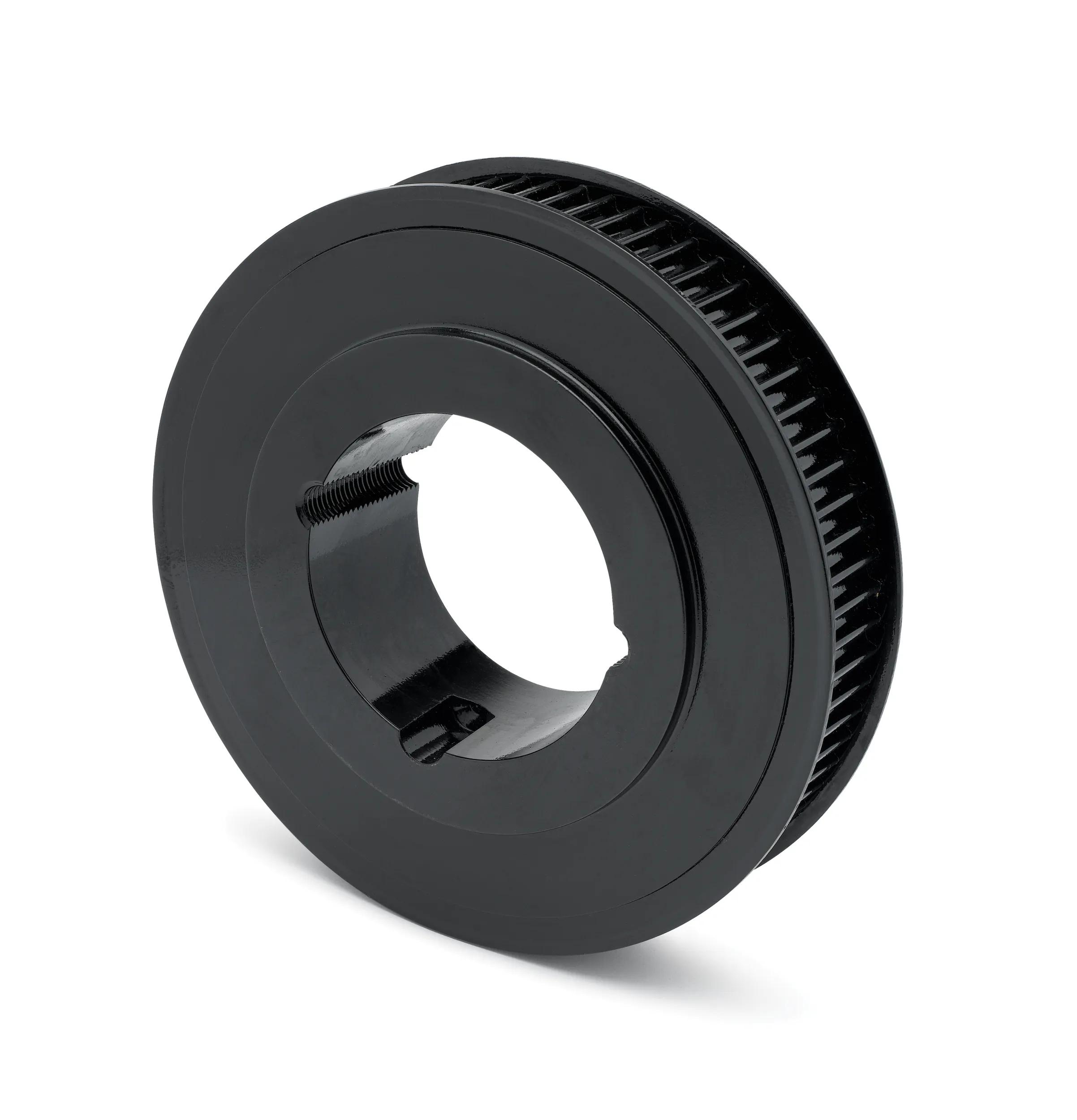

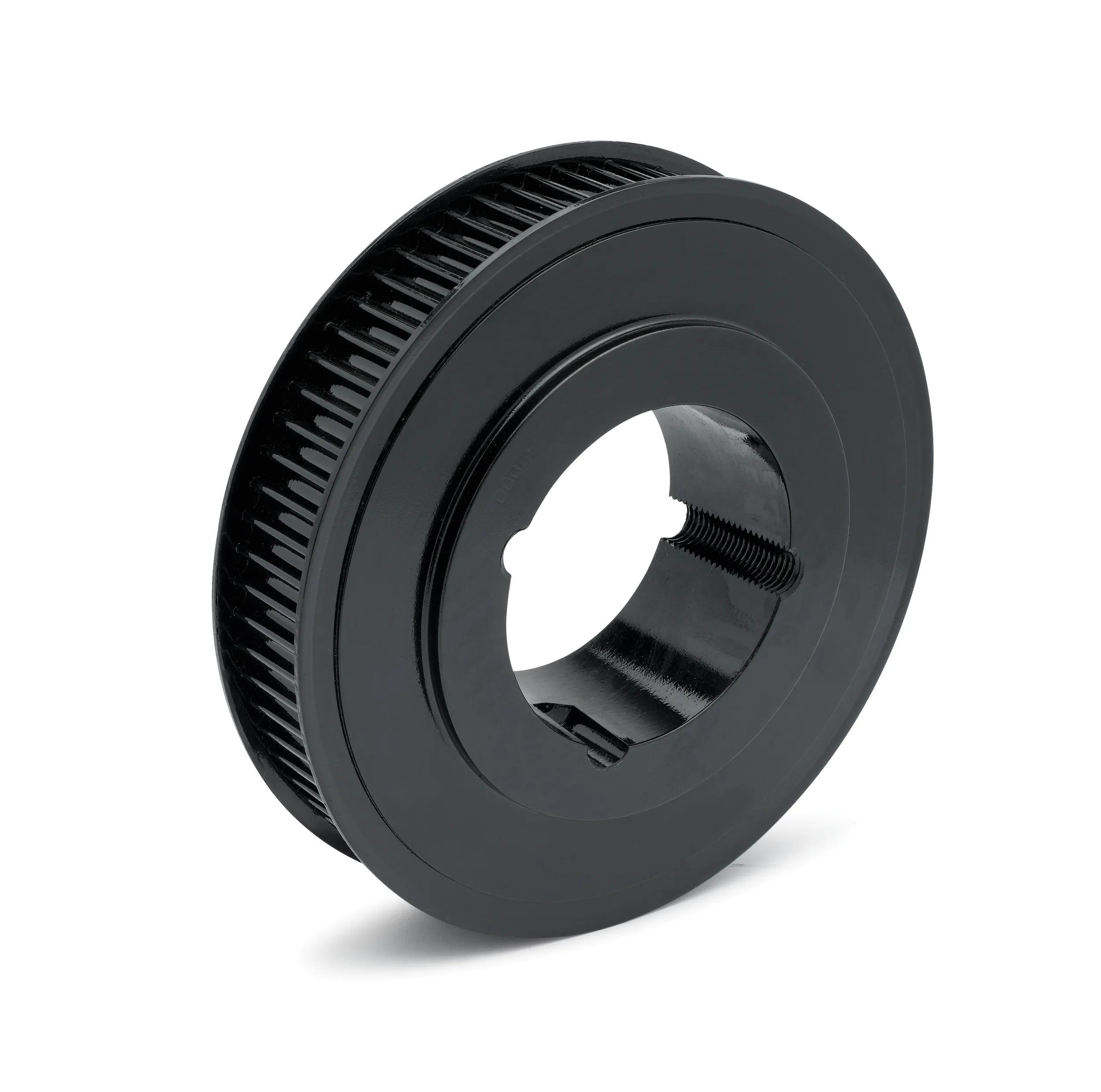

8MX-90S-21 Dodge® 481945 Type B Web Belt Sprocket, 1/2 to 2-11/16 in Taper-Lock® Bore, 8.96 in OD, 9.023 in Dia Pitch, 1.2 in W Face, Alternate Part Number: 8MX-90S-21
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD481945
- Alt Part Number: 8MX-90S-21
- MPN: 481945
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Belt Sprocket, Type B Web, Taper-Lock® Bore, 1/2 to 2-11/16 in Bore Dia, 8.96 in Outside Dia, 9.023 in, 8 mm Pitch, 1.2 in Face Width, 0.55 in Hub Projection, 2517 Bushing, 1-3/4 in Overall Length, For Use With: 21 mm W Type HT Belt
| Bore Diameter | : | 1/2 to 2-11/16 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | 2517 |
| Face Width | : | 1.2 in |
| Hub Projection | : | 0.55 in |
| Outside Diameter | : | 8.96 in |
| Overall Length | : | 1-3/4 in |
| Pitch Diameter | : | 9.023 in |
| Pitch | : | 8 mm |
| Suitable For Use With | : | 21 mm W Type HT Belt |
| Type | : | Type B Web |
- Torque rated shaft gripping strength to meet the higher demands of the 200% rating of HT200 belt
- Compact save shaft space with compact taper lock design
- Reduce overhung load compact design allows closer mounting to motor or reducer bearings
- Improves bearing life
- Reduces maintenance costs
- 90 teeth
