Dodge® 47S07LR DOD47S07LR
  1. pin-int

Dodge® 47S07LR DOD47S07LR

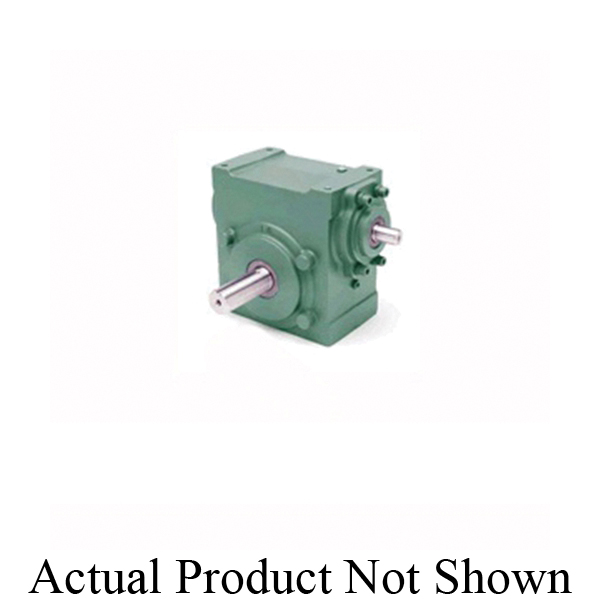

Dodge® Tigear-2® 47S07LR Size 47 Standard Right Angle Worm Gear Speed Reducer, Separate Input, Solid Shaft Output, 23.35 hp, 7:1 Gear, 233 rpm Maximum Output, 5801 in-lb Torque Rating

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD47S07LR
  • MPN: 47S07LR
  • UPC: 782475756957
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications.

Dodge® Tigear-2® Right Angle Worm Gear Speed Reducer, Size 47 Standard, 7:1 Gear Ratio, 23.35 hp, Separate Input, 10 Output, 1-1/8 in Input, 2 in Output, 233 rpm Output Maximum, 1750 rpm Input Maximum, 5801 in-lb Torque, 4-3/4 in Centre Distance, 3.53 in L x 0.5 in W x 0.5 in H Keyway, 60 to 95 % Efficiency, Left Hand/Right Hand Rotation, Synthetic Oil Lubrication, Gray Iron, 15.84 in L x 18.12 in W x 3.75 in H Dimensions

Centre Distance      :      4-3/4 in
Dimensions      :      15.84 in L x 18.12 in W x 3.75 in H
Efficiency      :      60 to 95 %
Gear Ratio      :      7:1
Horsepower      :      23.35 hp
Input Maximum Speed      :      1750 rpm
Input Size      :      1-1/8 in
Input Type      :      Separate
Keyway Size      :      3.53 in L x 0.5 in W x 0.5 in H
Lubrication Type      :      Synthetic Oil
Material      :      Gray Iron
Output Maximum Speed      :      233 rpm
Output Size      :      2 in
Output Type      :      Solid Shaft
Rotation Type      :      Left Hand/Right Hand
Torque Rating      :      5801 in-lb
Type      :      Size 47 Standard
  • Worm shaft machining process increases gear precision and accuracy by more than twice the norm
  • Precise plunge grinding process eliminates invisible lead and assures cool running
  • Higher torque capacity
  • Greater efficiency
  • New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
  • Breather free, sealed design
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_47S07LR_Specification_Sheet.pdf
