Dodge® 456674 DOD456674
  1. pin-int

Dodge® 456674 DOD456674

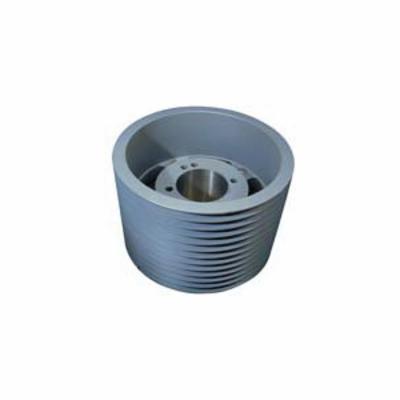

Dodge® 456674 Type A1 Sheave, QD® Bore, 14 in OD, 12 Grooves, 13.8 in Dia Pitch, 13.88 in W Face, Alternate Part Number: 12-8V14.00-M

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD456674
  • Alt Part Number: 12-8V14.00-M
  • MPN: 456674
  • UPC: 782475163519
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.

Dodge® Sheave, Type A1, QD® Bore, 14 in OD, 13.8 in Pitch Diameter, 12 Grooves, 13.88 in Face Width, M Bushing, For Use With: 8V Cross Section V-Belts, Cast Iron, Gray

Bore Type      :      QD®
Bushing Type      :      M
Face Width      :      13.88 in
Finish      :      Gray
Material      :      Cast Iron
Number of Grooves      :      12
Outside Diameter      :      14 in
Pitch Diameter      :      13.8 in
Suitable For Use With      :      8V Cross Section V-Belts
Type      :      Type A1
  • Isolates shock loads and vibration
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • 1100 design hp at 1180 rpm/800 design hp at 1770 rpm stock drive selection
  • Low maintenance
  • No lubrication required
  • Typically 95% efficiency can be obtained
