Dodge® 455914 DOD455914
  1. pin-int

Dodge® 455914 DOD455914

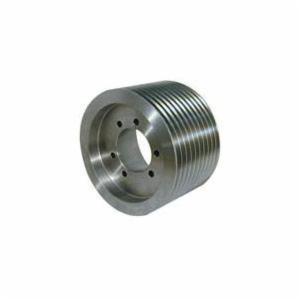

10C8.5--E Dodge® 455914 Block Heavy Duty Type A Sheave, 7/8 to 3-1/2 in QD® Bore, 8.9 in OD, 10 Grooves, 8.9 in Dia Pitch, 10.37 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD455914
  • Alt Part Number: 10C8.5--E
  • MPN: 455914
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® branded sheaves come in two bushing styles, QD and Taper Lock®. In addition to these bushing choices, Dodge® now offers choices within our QD sheaves line. Our QD sheave line comes in a standard duty and a heavy duty offering.

Dodge® Sheave, Block Heavy Duty Type A, QD® Bore, 7/8 to 3-1/2 in Bore Dia, 8.9 in Outside Dia, 8.9 in, 10 Grooves, 10.37 in Face Width, E Bushing, 10.37 in Overall Length, For Use With: C Cross Section V-Belt, Iron, Gray

Bore Diameter      :      7/8 to 3-1/2 in
Bore Type      :      QD®
Bushing Type      :      E
Face Width      :      10.37 in
Finish      :      Gray
Material      :      Iron
Number of Grooves      :      10
Outside Diameter      :      8.9 in
Overall Length      :      10.37 in
Pitch Diameter      :      8.9 in
Suitable For Use With      :      C Cross Section V-Belt
Type      :      Block Heavy Duty Type A
  • Isolates shock loads and vibration
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • Low maintenance drive and no lubrication
  • No lubrication required
  • Typically 95% efficiency can be obtained
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_455914_Specification_Sheet.pdf
