Dodge® 455841 DOD455841
  1. pin-int

Dodge® 455841 DOD455841

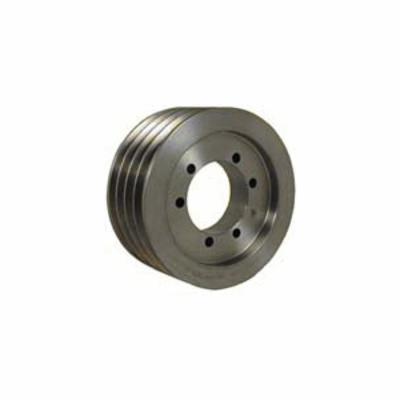

Dodge® 455841 Type A2 Sheave, 7/8 to 3-1/2 in QD® Bore, 12.4 in OD, 4 Grooves, 12.4 in Dia Pitch, 4.37 in W Face, Alternate Part Number: 4C120-E

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD455841
  • MPN: 455841
  • UPC: 782475159123
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.

Dodge® Sheave, Type A2, QD® Bore, 7/8 to 3-1/2 in Bore, 12.4 in OD, 12.4 in Pitch Diameter, 4 Grooves, 4.37 in Face Width, E Bushing, For Use With: C-Cross Section V-Belts, Cast Iron, Gray

Bore Diameter      :      7/8 to 3-1/2 in
Bore Type      :      QD®
Bushing Type      :      E
Face Width      :      4.37 in
Finish      :      Gray
Material      :      Cast Iron
Number of Grooves      :      4
Outside Diameter      :      12.4 in
Pitch Diameter      :      12.4 in
Suitable For Use With      :      C-Cross Section V-Belts
Type      :      Type A2
  • Isolates shock loads and vibration
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • Low maintenance
  • No lubrication required
  • Quiet operation
  • Typically 95% efficiency can be obtained
