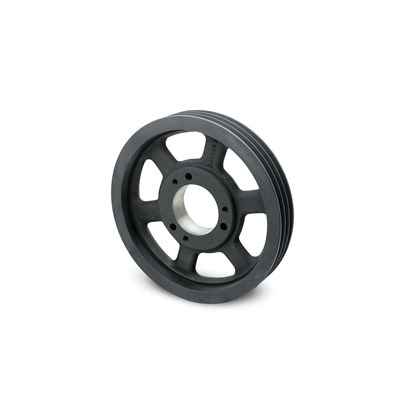

Dodge® 455751 DOD455751
Dodge® 455751 Heavy Duty Type A Web Multiple Groove Sheave, 7/8 to 3-1/2 in QD® Bore, 15-3/4 in OD, 8 Grooves, 15.76 in Dia Pitch, 6-1/4 in W Face, Alternate Part Number: 8B154-E
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD455751
- Alt Part Number: 8B154-E
- MPN: 455751
- UPC: 782475158225
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
All Baldor Dodge® V-drive sheaves are manufactured to ISO 9002 quality standards with precision machining that meets or exceeds joint RMA/MPTA industry standards for smooth operation and extended belt life. This provides low economical costs per hp transmitted due to shock load and vibration isolation creating clean, quiet operation.
Dodge® Multiple Groove Sheave, Heavy Duty Type A Web, QD® Bore, 7/8 to 3-1/2 in Bore, 15-3/4 in OD, 15.76 in Pitch Diameter, 8 Grooves, 6-1/4 in Face Width, E Bushing, For Use With: B-Cross Section Classical V-Belts, Gray Iron
| Bore Diameter | : | 7/8 to 3-1/2 in |
| Bore Type | : | QD® |
| Bushing Type | : | E |
| Face Width | : | 6-1/4 in |
| Material | : | Gray Iron |
| Number of Grooves | : | 8 |
| Outside Diameter | : | 15-3/4 in |
| Pitch Diameter | : | 15.76 in |
| Suitable For Use With | : | B-Cross Section Classical V-Belts |
| Type | : | Heavy Duty Type A Web |
- Isolates vibration, cushions shock loads
- Minor misalignment capability
- Drive ratios of 6:1 or more possible
- Low maintenance
- No lubrication required
- Efficiency of 93% is typical
- Without Keyway
