Dodge® 455477 DOD455477
  1. pin-int

Dodge® 455477 DOD455477

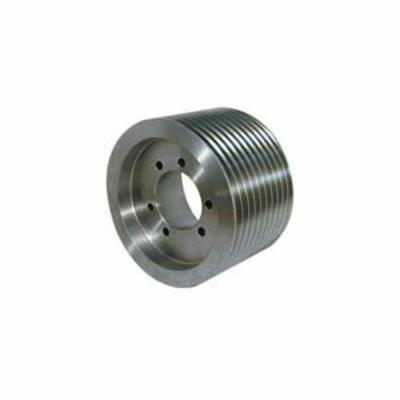

Dodge® 455477 Type A1 Sheave, 1-15/16 to 5-1/2 in QD® Bore, 17 in OD, 10 Grooves, 16.8 in Dia Pitch, 11.63 in W Face, Alternate Part Number: 10-8V17.00-M

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD455477
  • Alt Part Number: 10-8V17.00-M
  • MPN: 455477
  • UPC: 782475155521
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.

Dodge® Sheave, Type A1, QD® Bore, 1-15/16 to 5-1/2 in Bore, 17 in OD, 16.8 in Pitch Diameter, 10 Grooves, 11.63 in Face Width, M Bushing, For Use With: 8V Cross Section V-Belts, Cast Iron, Gray

Bore Diameter      :      1-15/16 to 5-1/2 in
Bore Type      :      QD®
Bushing Type      :      M
Face Width      :      11.63 in
Finish      :      Gray
Material      :      Cast Iron
Number of Grooves      :      10
Outside Diameter      :      17 in
Pitch Diameter      :      16.8 in
Suitable For Use With      :      8V Cross Section V-Belts
Type      :      Type A1
  • Isolates shock loads and vibration
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • 1100 design hp at 1180 rpm/800 design hp at 1770 rpm stock drive selection
  • Low maintenance
  • No lubrication required
  • Typically 95% efficiency can be obtained
