Dodge® 455405 DOD455405
  1. pin-int

Dodge® 455405 DOD455405

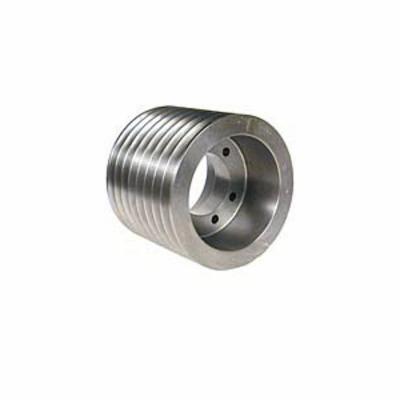

Dodge® 455405 Type A1 Web Sheave, 1 to 4 in QD® Bore, 13.2 in OD, 8 Grooves, 13.1 in Dia Pitch, 5.81 in W Face, Alternate Part Number: 8-5V13.20-F

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD455405
  • Alt Part Number: 8-5V13.20-F
  • MPN: 455405
  • UPC: 782475154807
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.

Dodge® Sheave, Type A1 Web, QD® Bore, 1 to 4 in Bore, 13.2 in OD, 13.1 in Pitch Diameter, 8 Grooves, 5.81 in Face Width, F Bushing, For Use With: 5V-Cross Section V-Belts, Cast Iron, Gray

Bore Diameter      :      1 to 4 in
Bore Type      :      QD®
Bushing Type      :      F
Face Width      :      5.81 in
Finish      :      Gray
Material      :      Cast Iron
Number of Grooves      :      8
Outside Diameter      :      13.2 in
Pitch Diameter      :      13.1 in
Suitable For Use With      :      5V-Cross Section V-Belts
Type      :      Type A1 Web
  • Isolates shock loads and vibration
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • 1100 design hp at 1180 rpm/800 design hp at 1770 rpm stock drive selection
  • Low maintenance
  • No lubrication required
  • Typically 95% efficiency can be obtained
