Dodge® 455385 DOD455385

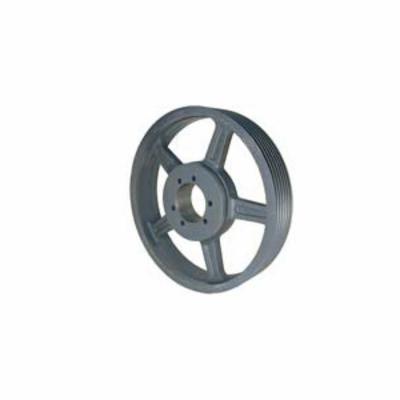

Dodge® 455385 Type B3 Sheave, 1 to 4 in QD® Bore, 16 in OD, 6 Grooves, 15.9 in Dia Pitch, 4.44 in W Face, Alternate Part Number: 6-5V16.00-F
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD455385
- Alt Part Number: 6-5V16.00-F
- MPN: 455385
- UPC: 782475154609
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.
Dodge® Sheave, Type B3, QD® Bore, 1 to 4 in Bore, 16 in OD, 15.9 in Pitch Diameter, 6 Grooves, 4.44 in Face Width, F Bushing, For Use With: 5V-Cross Section V-Belts, Cast Iron, Gray
| Bore Diameter | : | 1 to 4 in |
| Bore Type | : | QD® |
| Bushing Type | : | F |
| Face Width | : | 4.44 in |
| Finish | : | Gray |
| Material | : | Cast Iron |
| Number of Grooves | : | 6 |
| Outside Diameter | : | 16 in |
| Pitch Diameter | : | 15.9 in |
| Suitable For Use With | : | 5V-Cross Section V-Belts |
| Type | : | Type B3 |
- Isolates shock loads and vibration
- Minor misalignment capability
- Drive ratios of 6:1 or more possible
- 1100 design hp at 1180 rpm/800 design hp at 1770 rpm stock drive selection
- Low maintenance
- No lubrication required
- Typically 95% efficiency can be obtained
