Dodge® 455359 DOD455359
  1. pin-int

Dodge® 455359 DOD455359

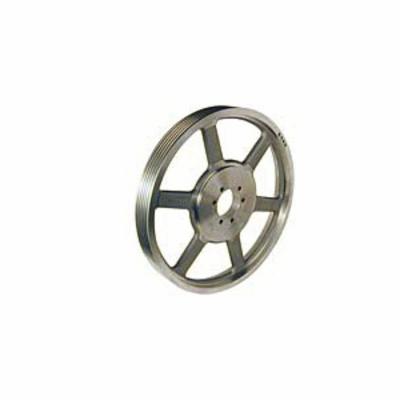

Dodge® 455359 Type D3 Sheave, 1-7/16 to 4-1/2 in QD® Bore, 31-1/2 in OD, 5 Grooves, 31.4 in Dia Pitch, 3-3/4 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD455359
  • Alt Part Number: 5-5V31.50-J
  • MPN: 455359
  • UPC: 782475154340
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.

Dodge® Sheave, Type D3, QD® Bore, 1-7/16 to 4-1/2 in Bore, 31-1/2 in OD, 31.4 in Pitch Diameter, 5 Grooves, 3-3/4 in Face Width, J Bushing, For Use With: 5V-Cross Section V-Belts, Cast Iron, Gray

Bore Diameter      :      1-7/16 to 4-1/2 in
Bore Type      :      QD®
Bushing Type      :      J
Face Width      :      3-3/4 in
Finish      :      Gray
Material      :      Cast Iron
Number of Grooves      :      5
Outside Diameter      :      31-1/2 in
Pitch Diameter      :      31.4 in
Suitable For Use With      :      5V-Cross Section V-Belts
Type      :      Type D3
  • Isolates shock loads and vibration
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • 1100 design hp at 1180 rpm/800 design hp at 1770 rpm stock drive selection
  • Low maintenance
  • No lubrication required
  • Typically 95% efficiency can be obtained
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_455359_Specification_Sheet.pdf
