Dodge® 455315 DOD455315
  1. pin-int

Dodge® 455315 DOD455315

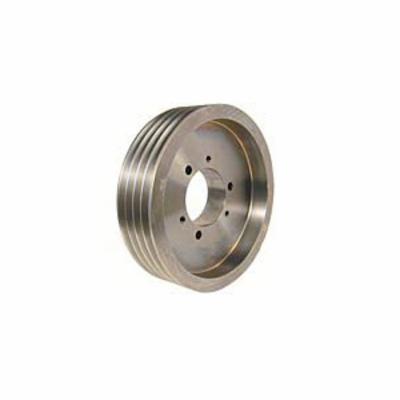

Dodge® 455315 Type B1 Web Sheave, 7/8 to 3-1/2 in Taper-Lock® Bore, 10.3 in OD, 4 Grooves, 10.2 in Dia Pitch, 3.06 in W Face, Alternate Part Number: 4-5V10.30-E

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD455315
  • Alt Part Number: 4-5V10.30-E
  • MPN: 455315
  • UPC: 782475153909
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.

Dodge® Sheave, Type B1 Web, Taper-Lock® Bore, 7/8 to 3-1/2 in Bore, 10.3 in OD, 10.2 in Pitch Diameter, 4 Grooves, 3.06 in Face Width, E Bushing, For Use With: 5V-Cross Section V-Belts, Cast Iron, Gray

Bore Diameter      :      7/8 to 3-1/2 in
Bore Type      :      Taper-Lock®
Bushing Type      :      E
Face Width      :      3.06 in
Finish      :      Gray
Material      :      Cast Iron
Number of Grooves      :      4
Outside Diameter      :      10.3 in
Pitch Diameter      :      10.2 in
Suitable For Use With      :      5V-Cross Section V-Belts
Type      :      Type B1 Web
  • Isolates shock loads and vibration
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • 1100 design hp at 1180 rpm/800 design hp at 1770 rpm stock drive selection
  • Low maintenance
  • No lubrication required
  • Typically 95% efficiency can be obtained
