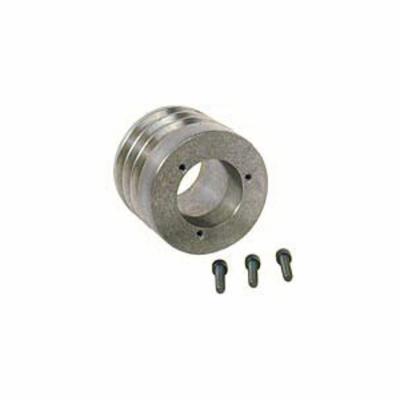

Dodge® 455269 DOD455269
Dodge® 455269 Type E1 Sheave, 7/16 to 2 in Taper-Lock® Bore, 4.65 in OD, 3 Grooves, 4.55 in Dia Pitch, 2.38 in W Face, Alternate Part Number: 3-5V4.65-SDS
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD455269
- Alt Part Number: 3-5V4.65-SDS
- MPN: 455269
- UPC: 782475153459
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.
Dodge® Sheave, Type E1, Taper-Lock® Bore, 7/16 to 2 in Bore, 4.65 in OD, 4.55 in Pitch Diameter, 3 Grooves, 2.38 in Face Width, SDS Bushing, For Use With: 5V-Cross Section V-Belts, Cast Iron, Gray
| Bore Diameter | : | 7/16 to 2 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | SDS |
| Face Width | : | 2.38 in |
| Finish | : | Gray |
| Material | : | Cast Iron |
| Number of Grooves | : | 3 |
| Outside Diameter | : | 4.65 in |
| Pitch Diameter | : | 4.55 in |
| Suitable For Use With | : | 5V-Cross Section V-Belts |
| Type | : | Type E1 |
- Isolates shock loads and vibration
- Minor misalignment capability
- Drive ratios of 6:1 or more possible
- 1100 design hp at 1180 rpm/800 design hp at 1770 rpm stock drive selection
- Low maintenance
- No lubrication required
- Typically 95% efficiency can be obtained
Line Drawing
