Dodge® 455158 DOD455158

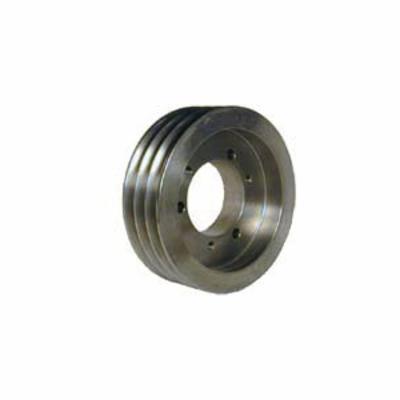

Dodge® 455158 Type D1 Sheave, 7/16 to 2 in Taper-Lock® Bore, 6 in OD, 3 Grooves, 5.95 in Dia Pitch, 1-1/2 in W Face, Alternate Part Number: 3-3V6.00-SDS
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD455158
- Alt Part Number: 3-3V6.00-SDS
- MPN: 455158
- UPC: 782475152346
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Sheave, Type D1, Taper-Lock® Bore, 7/16 to 2 in Bore, 6 in OD, 5.95 in Pitch Diameter, 3 Grooves, 1-1/2 in Face Width, SDS Bushing, For Use With: 3V-Cross Section V-Belts, Cast Iron, Gray
| Bore Diameter | : | 7/16 to 2 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | SDS |
| Face Width | : | 1-1/2 in |
| Finish | : | Gray |
| Material | : | Cast Iron |
| Number of Grooves | : | 3 |
| Outside Diameter | : | 6 in |
| Pitch Diameter | : | 5.95 in |
| Suitable For Use With | : | 3V-Cross Section V-Belts |
| Type | : | Type D1 |
- Isolates shock loads and vibration
- Minor misalignment capability
- Drive ratios of 6:1 or more possible
- Low maintenance
- No lubrication required
- Typically 95% efficiency can be obtained
Line Drawing
