Dodge® 455132 DOD455132

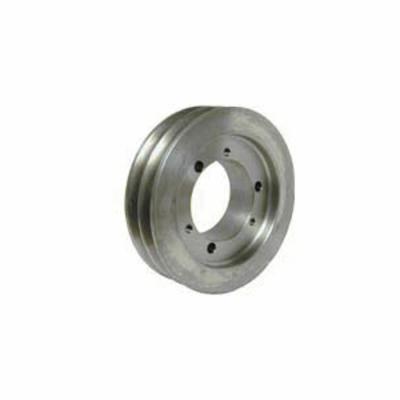

Dodge® 455132 Type C1 Sheave, 7/16 to 1-11/16 in Taper-Lock® Bore, 4-1/2 in OD, 2 Grooves, 4.45 in Dia Pitch, 1.09 in W Face
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD455132
- Alt Part Number: 2-3V4.50-SH
- MPN: 455132
- UPC: 782475152087
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Dodge® Sheave, Type C1, Taper-Lock® Bore, 7/16 to 1-11/16 in Bore, 4-1/2 in OD, 4.45 in Pitch Diameter, 2 Grooves, 1.09 in Face Width, SH Bushing, For Use With: 3V-Cross Section V-Belts, Cast Iron, Gray
| Bore Diameter | : | 7/16 to 1-11/16 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | SH |
| Face Width | : | 1.09 in |
| Finish | : | Gray |
| Material | : | Cast Iron |
| Number of Grooves | : | 2 |
| Outside Diameter | : | 4-1/2 in |
| Pitch Diameter | : | 4.45 in |
| Suitable For Use With | : | 3V-Cross Section V-Belts |
| Type | : | Type C1 |
- Isolates shock loads and vibration
- Minor misalignment capability
- Drive ratios of 6:1 or more possible
- Low maintenance
- No lubrication required
- Typically 95% efficiency can be obtained
Line Drawing
