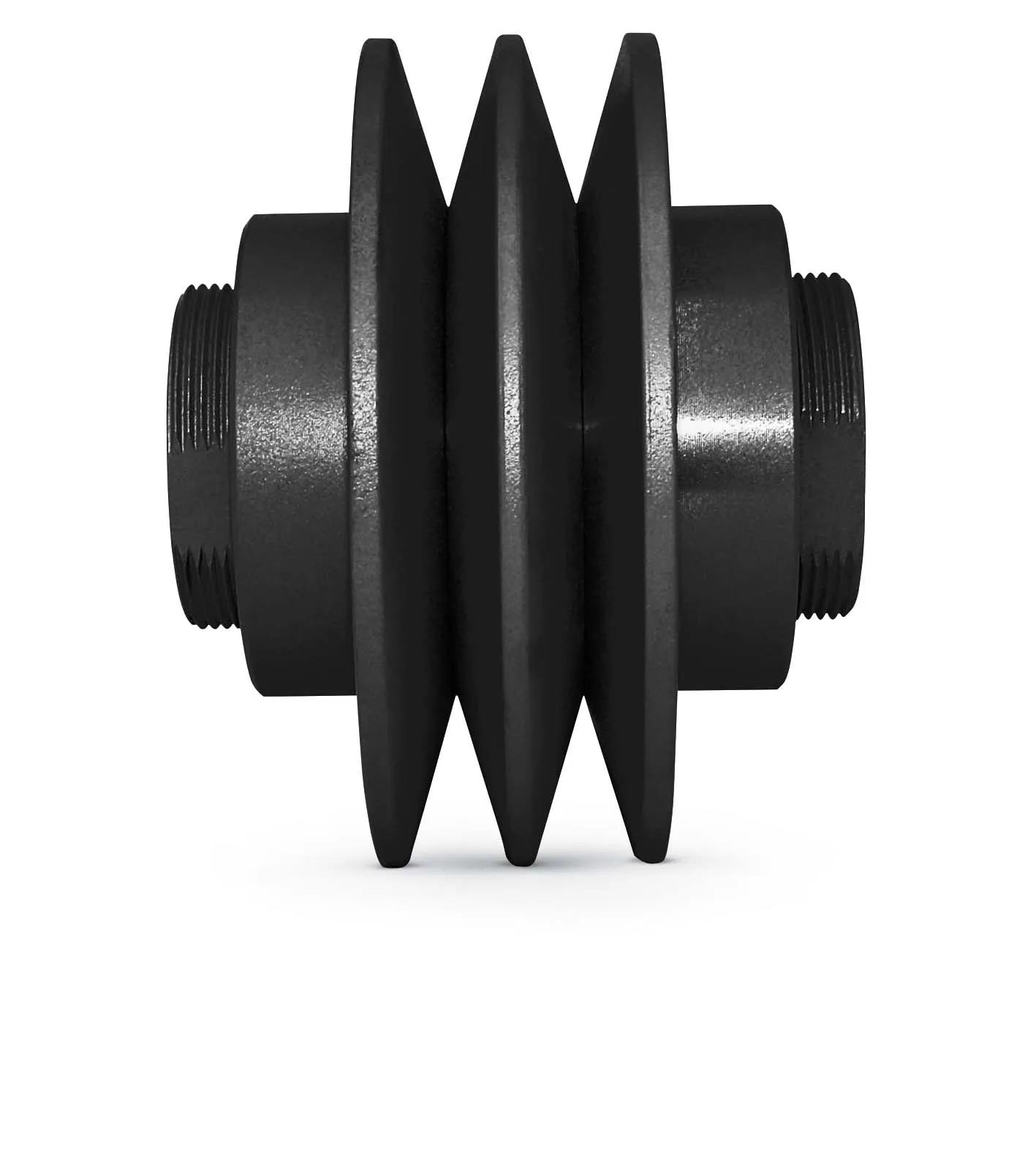

Dodge® 2VP50X1-1/8 DOD2VP501 1/8
Dodge® 2VP50X1-1/8 VP Series Type 4 Adjustable Pitch Sheave, 1-1/8 in Bore, 4-3/4 in OD, 2 Grooves, 3.55 to 4.35 in (3L)/3.65 to 4.65 in (A/4L)/4.05 to 5.05 in (B/5L) Dia Pitch, 1-3/8 to 2-1/8 in W Face
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD2VP501 1/8
- MPN: 2VP50X1-1/8
- UPC: 775829146085
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Adjustable Pitch Sheave, Type 4, Series: VP Series, 1-1/8 in Bore, 4-3/4 in OD, 3.55 to 4.35 in (3L)/3.65 to 4.65 in (A/4L)/4.05 to 5.05 in (B/5L) Pitch Diameter, 2 Grooves, 1-3/8 to 2-1/8 in Face Width, 3 in Overall Length, For Use With: 3L/A, 4L/B, 5L Cross Section Belts, Cast Iron
| Bore Diameter | : | 1-1/8 in |
| Face Width | : | 1-3/8 to 2-1/8 in |
| Material | : | Cast Iron |
| Number of Grooves | : | 2 |
| Outside Diameter | : | 4-3/4 in |
| Overall Length | : | 3 in |
| Pitch Diameter | : | 3.55 to 4.35 in (3L)/3.65 to 4.65 in (A/4L)/4.05 to 5.05 in (B/5L) |
| Series | : | VP Series |
| Suitable For Use With | : | 3L/A, 4L/B, 5L Cross Section Belts |
| Type | : | Type 4 |
- Finished bore variable speed sheaves made of cast iron and designed for heavier duty service up to 25 hp
