Dodge® 2MBL59 DOD2MBL59
  1. pin-int

Dodge® 2MBL59 DOD2MBL59

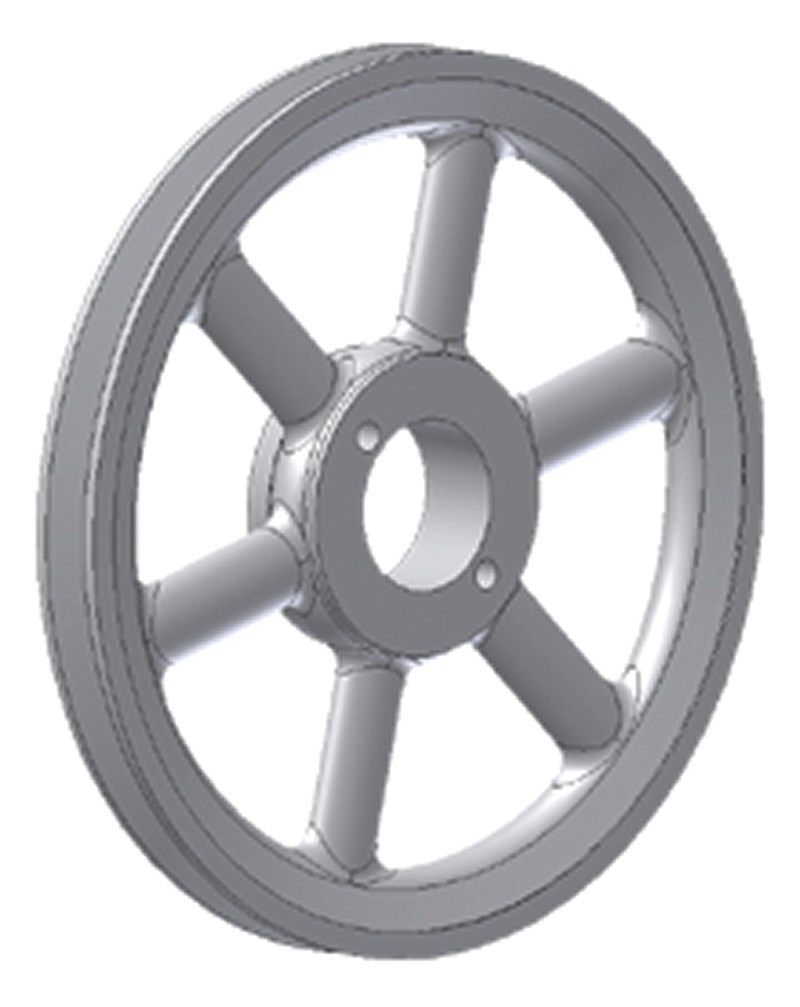

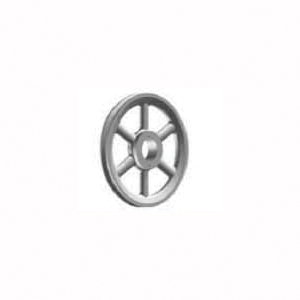

Dodge® 2MBL59 Light-Duty Type 4W Bushed Sheave, 1/2 to 1-1/2 in Dia Bore, 5.95 in OD, 2 Grooves, 5.55 in (A)/5.95 in (B) Dia Pitch, 1-3/4 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD2MBL59
  • MPN: 2MBL59
  • UPC: 775829008390
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Bushed Sheave, Light-Duty Type 4W, 1/2 to 1-1/2 in Bore Dia, 5.95 in Outside Dia, 5.55 in (A)/5.95 in (B), 2 Grooves, 1-3/4 in Face Width, MBL Bushing, For Use With: A and B Cross Section Belts, Cast Iron

Type      :      Light-Duty Type 4W
  • Can handle up to 20 hp at 1750 rpm
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_108371_Catalog.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4b98f75fe4b9dd2892aaece663dab1bf4e145155e1a9298f8943a0aa12f92c62.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e2d07140421a6474e62874ff082aa963e0a8bde78728b5dd361c4bf64a797acc.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
