Dodge® 2MB65X1-3/8 DOD2MB651 3/8
  1. pin-int

Dodge® 2MB65X1-3/8 DOD2MB651 3/8

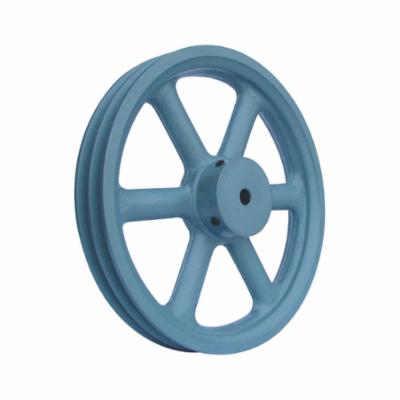

Dodge® 2MB65X1-3/8 Light Duty Type 8A Fixed Bore Sheave, 1-3/8 in Bore, 6.45 in OD, 2 Grooves, 6.05 in (A)/6.45 in (B) Dia Pitch, 1-11/16 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD2MB651 3/8
  • Alt Part Number: 2BK67 X 1-3/8
  • MPN: 2MB65X1-3/8
  • UPC: 781568518397
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Fixed Bore Sheave, Light Duty Type 8A, 1-3/8 in Bore, 6.45 in OD, 6.05 in (A)/6.45 in (B) Pitch Diameter, 2 Grooves, 1-11/16 in Face Width, 2MB Bushing, 2-5/16 in Overall Length, For Use With: AB Cross Section V-Belts, Cast Iron, Gray

Bore Diameter      :      1-3/8 in
Bushing Type      :      2MB
Face Width      :      1-11/16 in
Finish      :      Gray
Material      :      Cast Iron
Number of Grooves      :      2
Outside Diameter      :      6.45 in
Overall Length      :      2-5/16 in
Pitch Diameter      :      6.05 in (A)/6.45 in (B)
Suitable For Use With      :      AB Cross Section V-Belts
Type      :      Light Duty Type 8A
  • All products have two set screws, resulting in a tighter grip and improved performance
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_146401_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_2MB65X1_3_8_Specification_Sheet.pdf
