Dodge® 253159 DOD253159

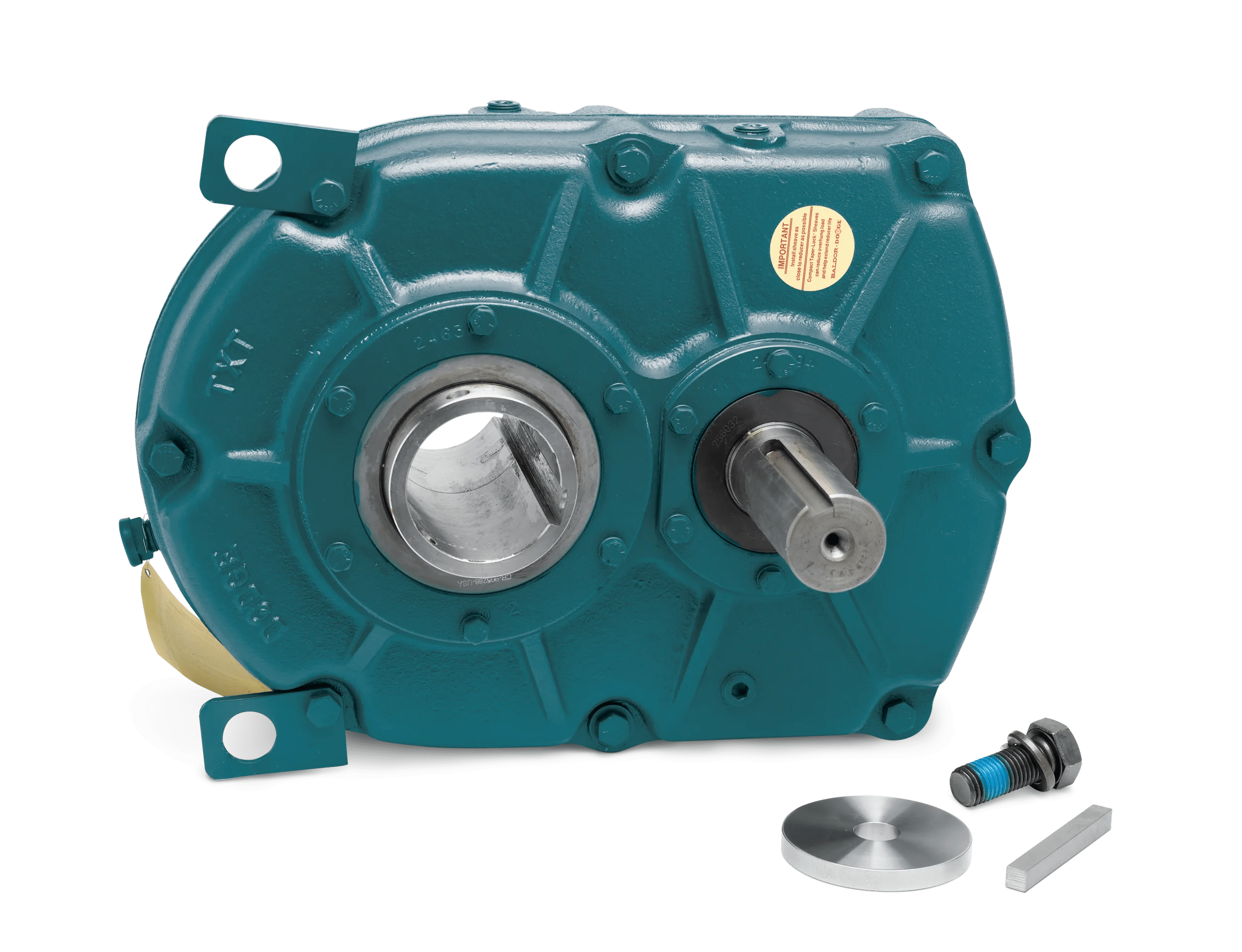

TA6307H40M Dodge® 253159 Single Reduction Screw Conveyor Speed Reducer, Shaft Input, Straight Bore Output, 11.7 hp, 5:1 Gear, Alternate Part Number: SCXT305A
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD253159
- Alt Part Number: SCXT305A
- MPN: 253159
- UPC: 782475690671
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Torque-Arm™ (SCXT) is a helical gear reducer for screw conveyor applications. This unit mounts directly to the trough end of the screw, using the optional adapter and drive shaft. It offers a number of accessories available for the toughest application.
Dodge® Screw Conveyor Speed Reducer, Single Reduction, 5:1 Gear Ratio, 11.7 hp, Shaft Input, Straight Bore Output, 1-5/8 in Dia Input, 2-3/16 in Output, 2240 rpm Input Maximum Speed, Oil Lubrication, Shaft Mount, Cast Iron, Gray, 12.88 in W x 9.25 in H
| Dimensions | : | 12.88 in W x 9.25 in H |
| Finish | : | Gray |
| Gear Ratio | : | 5:1 |
| Horsepower | : | 11.7 hp |
| Input Maximum Speed | : | 2240 rpm |
| Input Size | : | 1-5/8 in Dia |
| Input Type | : | Shaft |
| Lubrication Type | : | Oil |
| Material | : | Cast Iron |
| Mounting Type | : | Shaft |
| Output Size | : | 2-3/16 in |
| Output Type | : | Straight Bore |
| Type | : | Single Reduction |
- Heavy duty sealing system
- Steel motor mount system
- Screw conveyor trough end adapter
- Pre-drilled drive shafts
- Straight bore configuration with stock drive shafts for most CEMA designed screws
- 2240 rpm input/100 rpm output
- Case size: 3
- Size: SCXT305A
