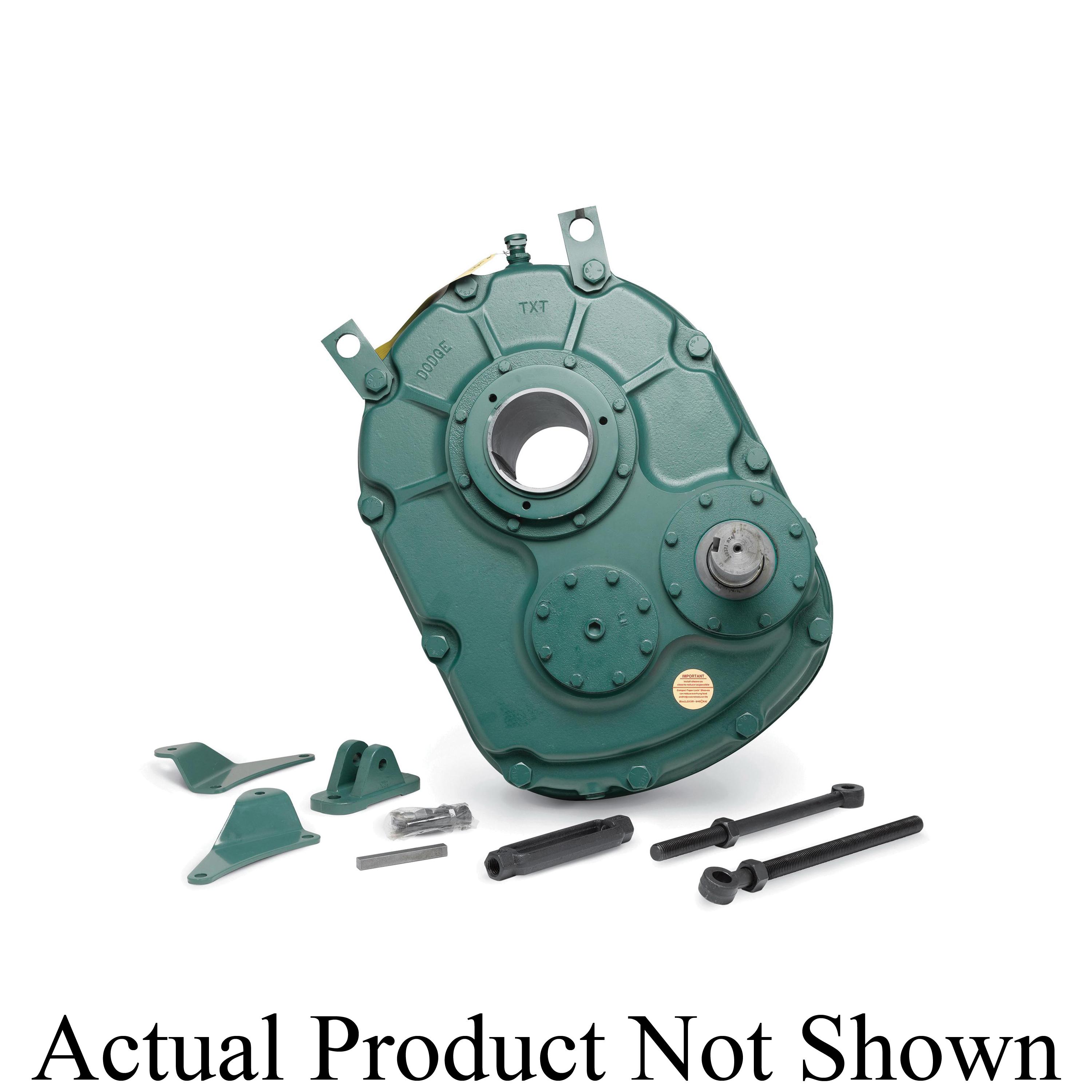

Dodge® 248283 DOD248283
Dodge® 248283 TXT Double Reduction Speed Reducer, Straight Bore Output, 106.9 hp, 15:1 Gear Ratio, 120 rpm Maximum Output
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD248283
- MPN: 248283
- UPC: 782475208531
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Torque-Arm® (TXT) is a shaft mount helical gear reducer that mounts directly to the driven shaft. TXT is a proven gear reducer that can be installed in the toughest applications requiring long life. Many accessories are available to make this reducer suitable for a wide range of environments.
Dodge®, 248283, Speed Reducer, Double Reduction, Series: TXT, 15:1 Gear Ratio, 106.9 hp, Straight Bore Output, 2-7/16 in Input, 4-7/16 in Output, 120 rpm Output Maximum, 1809 rpm Input Maximum, 98.5 % Efficiency, Shaft Mounting, Cast Iron, Gray Painted, 20.25 in L x 11.38 in W x 28.25 in H Dimensions
| Dimensions | : | 20.25 in L x 11.38 in W x 28.25 in H |
| Efficiency | : | 98.5 % |
| Finish | : | Gray Painted |
| Gear Ratio | : | 15:1 |
| Horsepower | : | 106.9 hp |
| Input Maximum Speed | : | 1809 rpm |
| Input Size | : | 2-7/16 in |
| Material | : | Cast Iron |
| Mounting Type | : | Shaft |
| Output Maximum Speed | : | 120 rpm |
| Output Size | : | 4-7/16 in |
| Output Type | : | Straight Bore |
| Series | : | TXT |
| Type | : | Double Reduction |
- Exclusive twin tapered bushings
- Precision, high-quality helical gearing
- Reliable anti-friction bearings and seals
- Efficient splash lubrication
- 100% factory noise and leak tested
- Rugged cast-iron efficient
- Heavy duty sealing system
- Steel motor mount system
- Perfect fit for harsh duty industries
