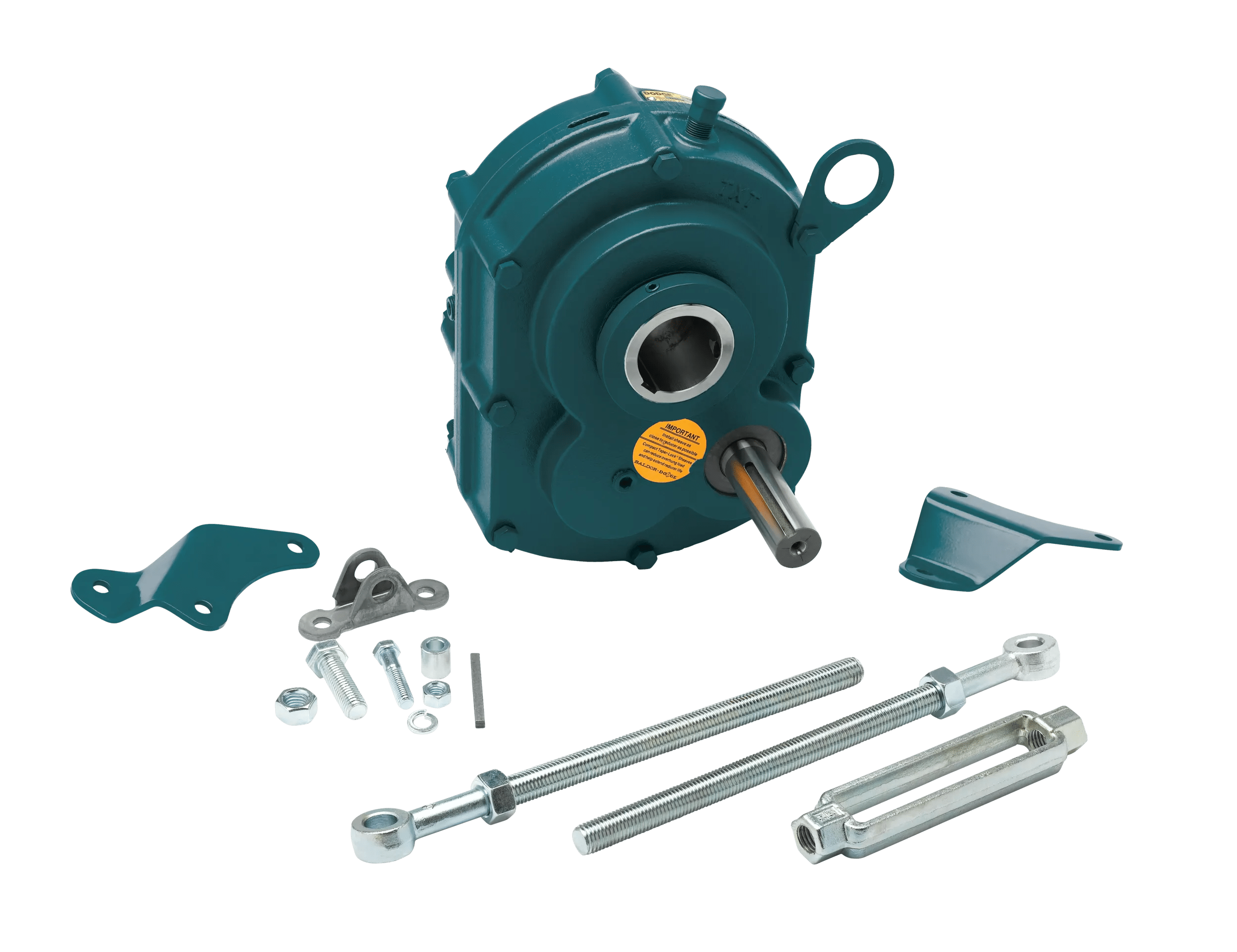

Dodge® 247169 DOD247169
TXT825AS Dodge® Torque-Arm™ 247169 Standard Double Reduction Speed Reducer, Solid Shaft Input, Straight Bore Output, 72.3 hp, 25:1 Gear
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD247169
- MPN: 247169
- UPC: 782475208043
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Dodge® Torque-Arm™ (TXT) is a shaft mount helical gear reducer that mounts directly to the driven shaft. TXT is a proven gear reducer that can be installed in the toughest applications requiring long life. Many accessories are available to make this reducer suitable for a wide range of environments.
Dodge® Torque-Arm™ Speed Reducer, Standard Double Reduction, 25:1 Gear Ratio, 72.3 hp, Solid Shaft Input, Straight Bore Output, 2-7/16 in Dia Input, 3-15/16 in Output, 1844 rpm Input Maximum Speed, 98.5 % Efficiency, Oil Lubrication, Shaft Mount, Cast Iron, Gray, 17.92 in L x 10.78 in W x 25.94 in H
| Dimensions | : | 17.92 in L x 10.78 in W x 25.94 in H |
| Efficiency | : | 98.5 % |
| Finish | : | Gray |
| Gear Ratio | : | 25:1 |
| Horsepower | : | 72.3 hp |
| Input Maximum Speed | : | 1844 rpm |
| Input Size | : | 2-7/16 in Dia |
| Input Type | : | Solid Shaft |
| Lubrication Type | : | Oil |
| Material | : | Cast Iron |
| Mounting Type | : | Shaft |
| Output Size | : | 3-15/16 in |
| Output Type | : | Straight Bore |
| Type | : | Standard Double Reduction |
- Heavy duty sealing system
- Steel motor mount system
- Patented twin tapered bushing system eliminates fretting corrosion and can be installed with regular hand tools
- Perfect fit for harsh duty industries
- Precision high quality gearing
- Maximum capacity housing design
- Reliable anti-friction bearings
- Strong shafts for support
- Proven seals keep oil in and contaminants out
- Efficient splash lubrication system
- 1844 rpm input/75 rpm output
- Case size: 7
- Size: TXT7A
