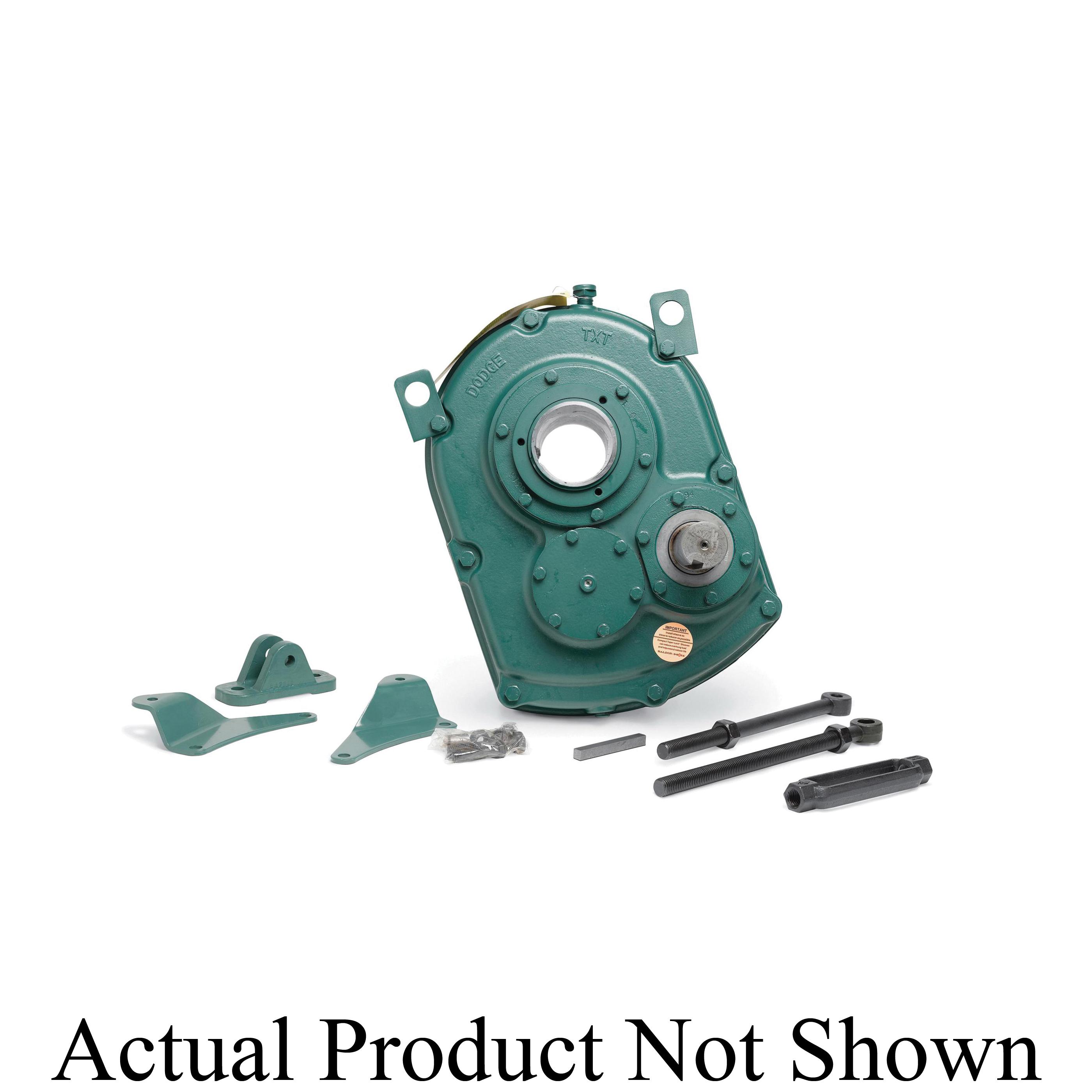

Dodge® 246327 DOD246327
Dodge® Torque-Arm® 246327 TXT Double Reduction Speed Reducer, Straight Bore Output, 9:1 Gear, 200 rpm Maximum Output
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD246327
- Alt Part Number: TXT609AS
- MPN: 246327
- UPC: 782475507801
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Torque-Arm® (TXT) is a shaft mount helical gear reducer that mounts directly to the driven shaft. TXT is a proven gear reducer that can be installed in the toughest applications requiring long life. Many accessories are available to make this reducer suitable for a wide range of environments.
Dodge® Torque-Arm® Speed Reducer, Double Reduction, Series: TXT, 9:1 Gear Ratio, Straight Bore Output, 2-3/16 in Input, 3-7/16 in Output, 200 rpm Output Maximum, 1840 rpm Input Maximum, 98.5 % Efficiency, Shaft Mounting, Cast Iron, Gray Painted, 15.13 in L x 9.63 in W x 21.31 in H Dimensions
| Dimensions | : | 15.13 in L x 9.63 in W x 21.31 in H |
| Efficiency | : | 98.5 % |
| Finish | : | Gray Painted |
| Gear Ratio | : | 9:1 |
| Input Maximum Speed | : | 1840 rpm |
| Input Size | : | 2-3/16 in |
| Material | : | Cast Iron |
| Mounting Type | : | Shaft |
| Output Maximum Speed | : | 200 rpm |
| Output Size | : | 3-7/16 in |
| Output Type | : | Straight Bore |
| Series | : | TXT |
| Type | : | Double Reduction |
- Exclusive twin tapered bushings
- Precision, high-quality helical gearing
- Reliable anti-friction bearings and seals
- Efficient splash lubrication
- 100% factory noise and leak tested
- Rugged cast-iron efficient
- Heavy duty sealing system
- Steel motor mount system
- Perfect fit for harsh duty industries
Specification Sheet
