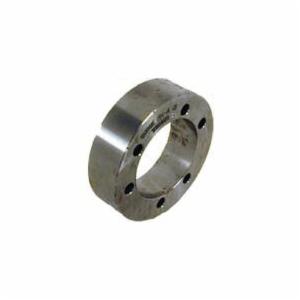

Dodge® 228472 DOD228472
Dodge® 228472 Conventional Reverse QD® Weld-On Hub, 4 in Dia Bore, 7 in OD, 5.63 in Dia Bolt Circle, 2-1/2 in OAL, Steel, Alternate Part Number: F-A
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD228472
- Alt Part Number: F-A
- MPN: 228472
- UPC: 782475900091
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® QD weld-on hubs are useful for welding into fan rotors, pulleys, plate sprockets, impellers, agitators, etc. which require secure mounting to the shaft. These hubs are made of low carbon steel for good welding compatibility. The data tabulation shows the standard QD bushings that are used with these hubs.
Dodge® Weld-On Hub, Conventional Reverse QD®, 4 in Bore Dia, 7 in Outside Dia, 7 in Pilot Dia, 5.63 in Bolt Circle, 2-1/2 in Overall Length, Steel
| Bolt Circle Diameter | : | 5.63 in |
| Bore Diameter | : | 4 in |
| Material | : | Steel |
| Outside Diameter | : | 7 in |
| Overall Length | : | 2-1/2 in |
| Pilot Diameter | : | 7 in |
| Type | : | Conventional Reverse QD® |
Specification Sheet
