Dodge® 22215 DOD022215

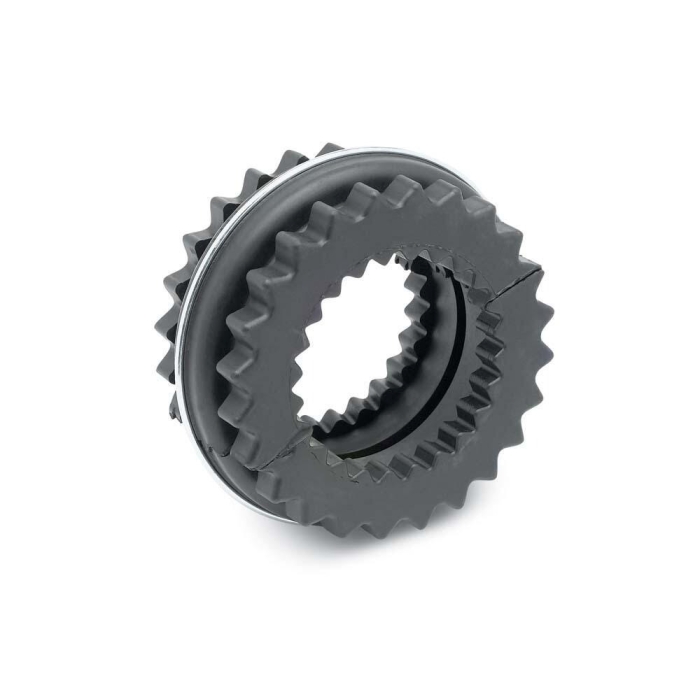

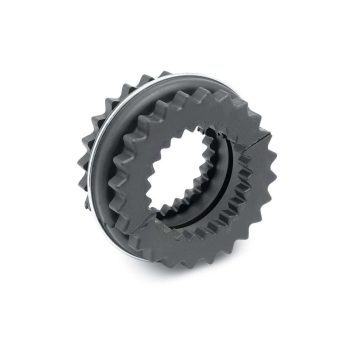

Dodge® 22215 D-Flex Type N Coupling Sleeve, 08 Coupling, 2-1/2 in L, 5-1/16 in OD, 4500 rpm Max, Neoprene

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD022215
  • MPN: 22215
  • UPC: 782475876440
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Coupling Sleeve, Type N, Series: D-Flex, 08 Coupling, 2-1/2 in Length, 5-1/16 in OD, 1135 in-lb Torque, 4500 rpm Maximum, For Use With: D-Flex Coupling, -30 to 275 deg F, Neoprene

Coupling Size      :      08
Length      :      2-1/2 in
Material      :      Neoprene
Maximum Speed      :      4500 rpm
Outside Diameter      :      5-1/16 in
Series      :      D-Flex
Suitable For Use With      :      D-Flex Coupling
Temperature Rating      :      -30 to 275 deg F
Torque Rating      :      1135 in-lb
Type      :      Type N
  • Rounded EPDM and neoprene element edges for full tooth engagement, even load distribution, reduced stress build up, and longer life
  • Outside diameter concentric to bore for ease in alignment
  • Interchangeable components makes installation quick and easy
  • No lubrication assures trouble-free operation
