Dodge® 22187 DOD022187
  1. pin-int

Dodge® 22187 DOD022187

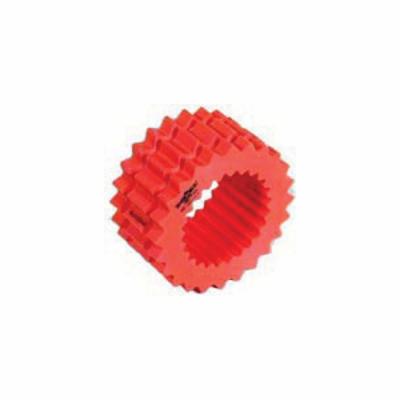

Dodge® 22187 D-Flex Type H Coupling Sleeve, 010 Coupling, 3-7/16 in L, 7-1/16 in OD, 3600 rpm Max, Hytrel®

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD022187
  • MPN: 22187
  • UPC: 782475872152
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Coupling Sleeve, Type H, Series: D-Flex, 010 Coupling, 3-7/16 in Length, 7-1/16 in OD, 11350 in-lb Torque, 3600 rpm Maximum, For Use With: D-Flex Coupling, -30 to 275 deg F, Hytrel®

Coupling Size      :      010
Length      :      3-7/16 in
Material      :      Hytrel®
Maximum Speed      :      3600 rpm
Outside Diameter      :      7-1/16 in
Series      :      D-Flex
Suitable For Use With      :      D-Flex Coupling
Temperature Rating      :      -30 to 275 deg F
Torque Rating      :      11350 in-lb
Type      :      Type H
  • Rounded EPDM and neoprene element edges for full tooth engagement, even load distribution, reduced stress build up, and longer life
  • Outside diameter concentric to bore for ease in alignment
  • Interchangeable components makes installation quick and easy
  • No lubrication assures trouble-free operation
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_022187_Specification_Sheet.pdf
